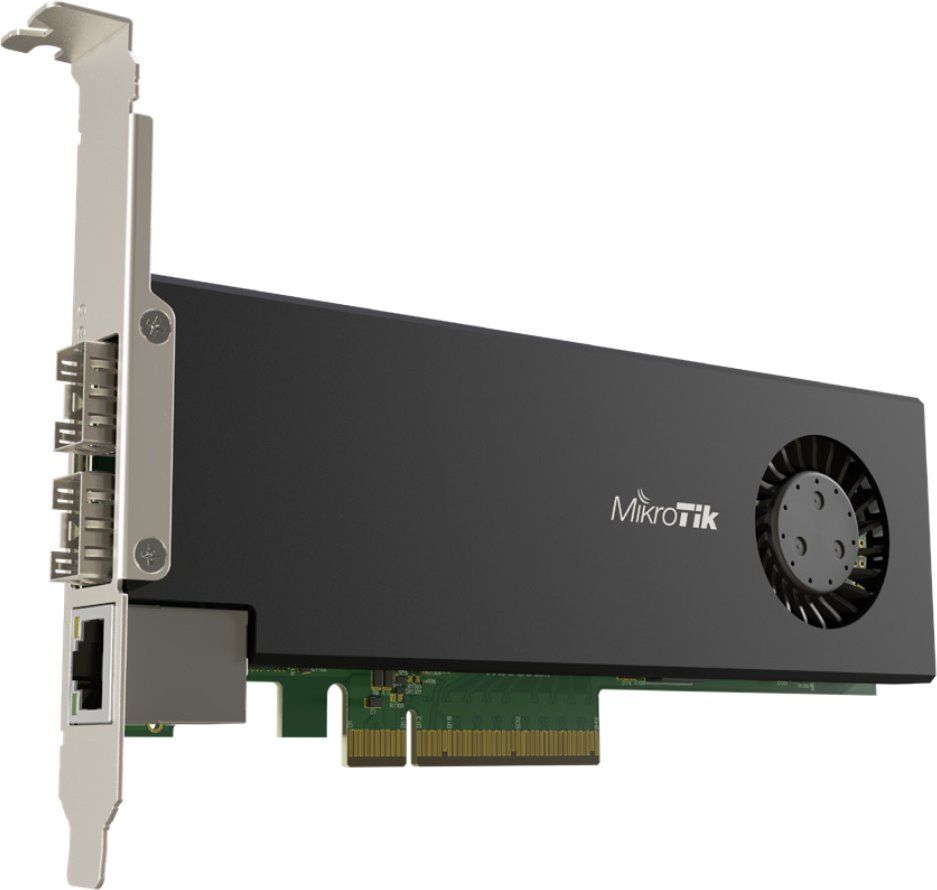

MikroTik Cloud Core Router, CCR2004-1G-2XS-PCIe

Popis produktu:

Cloud Core Router 2004-1G-2XS-PCIe network interface card with quad-core ARMv8 64-bit AL32400 CPU, 4GB RAM, 2x25G SFP28 cages, 1xGbit LAN, RouterOS L6

The smart and easy way to create 25 Gigabit networks if you want to save space in your server room.

Save space in your server room by adding a real CCR2004.. within the server itself!
This unique product combines a simple 2x 25 Gigabit PCIe Ethernet adapter with the impressive capabilities of a fully-fledged router.

By default, the PCIe interface will show up as four virtual Ethernet interfaces. Two interfaces in passthrough mode to the 25G SFP28 cages.
Remaining two virtual Ethernet-PCIe interfaces are bridged with the Gigabit Ethernet port for management access. The user can configure all interfaces and settings freely since we are running fully functional RouterOS here.

Technické parametry
Konektory a rozhraní
Rozhraní:PCI Express
Rychlost LAN:(1) 10/100/1000Mbps
Gigabit LAN:Ano
Optické rozhraní:(2) 1/10/25Gbps

Napájení
Max. spotřeba energie [W]:25

Fyzické charakteristiky
Velikost:Low profile, Full profile
Provozní teplota [°C]:-20 až 60
Šířka [mm]:69
Výška [mm]:18
Hloubka [mm]:170
