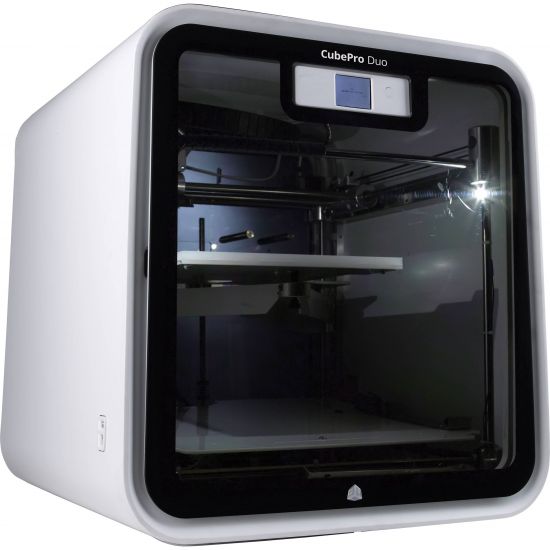

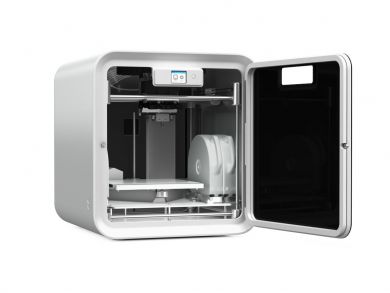

3D Tiskárna Cube Pro Duo - 2tisk hlavy, pro tisk PLA ABS,...

Popis produktu:

Vnitřní osvětlení;
Technologie 3D tisku:FDM;
Počet barev (tiskových hlav):2;
Tiskový materiál:ABS;
Rozlišení tiksu:0.1 mm;
Dotykový displej;
Auto kalibrace;
Tiskový materiál:PLA

WEIGHT & DIMENSIONS
CubePro dimensions
22.75(w) x 23.25(h) x 22.75(d) inches
57.8(w) x 59.1(h) x 57.8(d) cm

CubePro weight 90.7 lb / 41 kg
CubePro weight 94.3 lb / 43 kg
CubePro weight 98 lb / 44 kg
Maximum build size
11.2(w) x 9.06(h) x 10.6(d) inches
28.54(w) x 23(h) x 27.04(d) cm

Maximum build size
9.56(w) x 9.06(h) x 10.6(d) inches
24.29(w) x 23(h) x 27.04(d) cm

Maximum build size
7.89(w) x 9.06(h) x 10.6(d) inches
20.04(w) x 23(h) x 27.04(d) cm

Z AXIS RESOLUTION
0.100mm (0.004" / 100 microns)

LAYER THICKNESS
70 microns, 200 microns and 300 microns for fast mode. Available for all three models.

PRINT TOLERANCE
X and Y axis ± 1% dimension or ± 0.2mm (0.008" / 200mm microns) whichever is greater. Z axis ± half the processed z resolution. Shrinkage and warpage can occur on models and is purely geometry dependent.

PRINT SPEED EXTRUDED VOLUME
Maximum 15mm (9/16") per second and polymer dependent

POWER REQUIREMENTS
100 - 240v AC

MAXIMUM OPERATING TEMPERATURE AT EXTRUDER TIP
536°F / 280°C

SUPPORT MATERIAL
PLA / ABS / dissolvable natural PLA

SUPPORT REMOVAL
Break away supports with pliers or cutters or just fingers where appropriate. PLA plastic is soluble in sodium hydroxide solution used with a heated ultrasonic cleaner (care is required with this option).


SOFTWARE
All CubePro printers include complimentary conversion software. This application converts your 3D model into layered slices (G-code), ready for printing on your machine. Other features and uses of CubePro software include:Clear, familiar and easy-to-use interfaceScaling, rotating and movement of parts on a simulated print bedProven default settings for all CubePro 3D printersAbility to create custom profiles as neededImperial/metric conversion availableBuilt-in STL file verificationCombined part and tool path viewerProfiles for multiple material/support materials

COMPATIBILITY
Windows requirements
32 or 64 bit operating systems:Windows 7Windows 8Windows 8.1Windows is required for ad-hoc WiFi print job submission – if not already installed, the Cube software will automatically install the Microsoft .NET 4.0 framework
Mac OSX requirements
Mac 10.8 and up

Minimum hardware requirements
Processor: Multi-core processor - 2GHz or faster per core
System RAM: 2GB minimum
Screen resolution: 1024 x 768

Specifikace:
