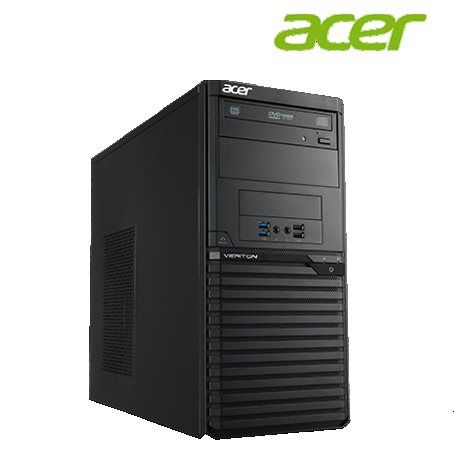

Acer Veriton M2632G PDCG3260/4GB/500GB/DVDRW/USB/W7PRO/W10PRO

Popis produktu:

Veriton VM2632G_E_FR300W (Intel) MT - Originální Windows® 7 Professional 64 / Win 10 Pro 64 - Intel Pentium Dual-Core G3260 LGA 3.3G 3M 1333 1150 53W Haswell - 1x 500GB SATA 7200rpm - 1x 4GB DDR3 - DVD±RW - USB klávesnice a myš - PSU 300W - čtečka paměťových karet


Model Name (Sub Brand + Product Number) Veriton M2632(G)
Bome Name VM2632G_E/VM2632_E
Chipset Intel
- North Bridge H81
- Sourth Bridge N/A
Housing kit Micro Tower
- Chassis name HM142A
- Bezel VM492
- Dimension (mm) 175(W) x 392(D) x  365(H)
- Number of 5.25" ODD bays 2
- Number of 3.5" external bays 2
- Number of 3.5" internal bays 4(2 for default)
- Front IO ports 2 USB2.0 + 2 USB3.0 ports
  + 2 audio jack
- Tool-less Chassis design Yes
Power supply 220W/300W
- Non-PFC Yes
- PFC Yes (Full range)
BIOS AMI
- ACER BIOS Copyright Yes
- DMI 2.0 compliance Yes
- WFM 2.0 compliance Yes
Mother Board
- Form Factor Micro-ATX
- 100% Solid capacitors No
- FMB / TDP 84W
- CPU Intel
- CPU Type Haswell
- CPU  Socket Type LGA 1150
- Memory UDIMM
- Memory Type DDR III 1600
- Dual/Single Channel Memory Dual
- Number of Memory Slots 2
- Maximum Memory Onboard 16GB
- Required minimum System Memory size 1GB
- HDD
- HDD Interface SATA 3.0/6.0 Gb/s
- Number of SATA Ports 4(3.0Gb/s*2 & 6.0Gb/s*2 )
- Number of PATA Ports 0
- Number of M.2 Slots
- VGA
- Intergrated Graphics Intel GMA HD
- Max. shareVGA memory Follow DVMT 5.0 spec
- Windows logo Win7/Win8.1
- Max. VGA resolution TBD
- LAN
- LAN Speed 10/100/1000 Mbps
- Integrated LAN controller Yes
- LAN PHY N/A
- Independent LAN Controller Realtek RTL8111E-VC
- Audio
- Audio codec Realtek ALC662-VD
- Sound playback Stereo (5.1 capable)
- Rear Audio Jacks 3
- Front Audio Jacks 2
- Expansion
- Number of PCIe x 16 slot 1
- Number of PCIe x 1 slot 2
- Number of PCI slots 1
- Dsub Port 1
- DVI port 1 (DVI-D)
- HDMI Port 0
- Display Port 0
- Number of e-SATA ports 0
- Number of Serial Ports (COM1) 1
- Number of Serial Ports on board header (COM2) 1
- Number of Parallel Ports Support by Printer Port Cable
- Number of Front USB Ports 2 USB2.0  +  2 USB 3.0
- Number of Rear USB Ports 4 USB2.0
- Number of PS2 ports 2
Management Standard
- WOL (Wake on LAN) Yes
- PXE (Boot from LAN) Yes
- Intel vPro Logo No
- Intel AMT No
- Other mgmt (ASF,DASH...) ASF
- DMTF Yes
Commercial features
- TPM support Optional (with TPM D/B)
- HDD password support Yes
- Chassis Intrusion Yes
- Chassis physical lock - Kensington & Pad lock Yes
- Others (Intel SBA, SRT...) n/a
- One Button recovery (OBR) Yes
- RAID support No
- Jumper Setting Label Yes
Selected solution
- Dust resistant filter No
- Internal Speaker Yes
- 2nd COM port cable Yes
- LPT port cable (or Extra I/O) Yes
Certification
- General CE, FCC, Nemko(CB,GS), MET
- Eup lot6 Yes
- Energy star 5.2 compliance Yes(G)
- EPEAT (selected countries) Yes
- HSF No
- GS Yes
- Acoustic standard  ( idle / operating ) 32dB / 28dB
Operation System support
- W7PR 32bit Yes
- W7PR 64bit Yes
- W7PR32/64bit dual load Yes
- Linpus Linux X-window Yes
- FreeDOS Yes
- W8PR 32bit No
- W8PR64/W7PR64 dual load Yes
- W8PR 64bit Yes
