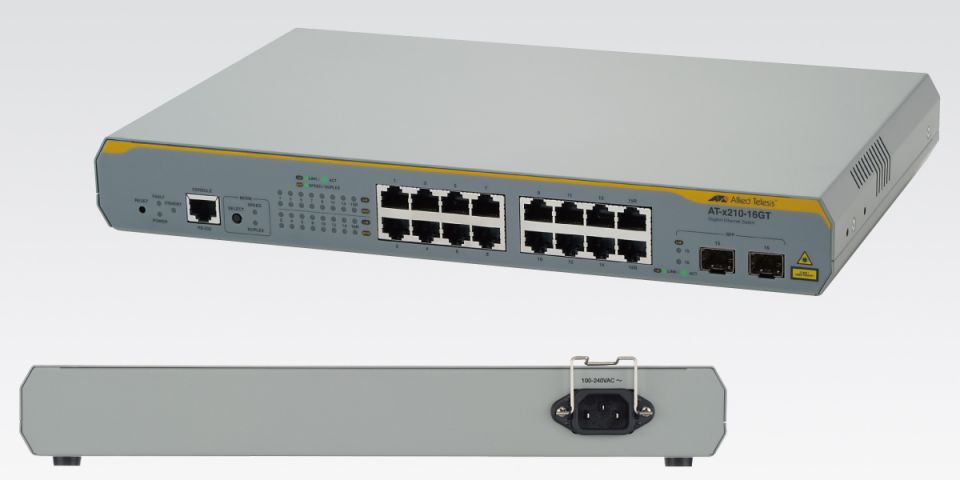

Allied Telesis L2+ 14xGb 2xSFP switch AT-x210-16GT

Popis produktu:

AT-x210-16GT
Enterprise Edge Switch

OVERVIEW
The Allied Telesis AT-x210-16GT features 14 x 10/100/1000T ports and 2 x Gigabit-SFP combo uplink ports for network access applications and provides an impressive set of features in an affordable package. The compact footprint, reduced heat dissipation and silent operation of the AT-x210-16GT makes it ideal for desktop applications or anywhere space is limited.

FEATURES
• AlliedWare Plus™ CLI and Web Interface
• Tri-Authentication
• Storm Protection
• Access Control Lists (ACL)
• Ethernet Protection Switched Rings (EPSRing™)
• Industry-leading Quality of Service (QoS)
• Loop Protection Frames prevent loops
• Link Aggregation
• Dynamic Host Configuration Protocol (DHCP) Snooping
• Bridge Protocol Data Unit (BPDU) Protection
• Voice VLAN
• Voice, video and data convergence
• IPv6 management
• Find Me device locator
• Fanless for silent operation

SPECIFICATIONS
10/100/1000T (RJ-45) copper ports
• 14

SFP and 10/100/1000t combo ports
• 2

Total ports
• 16

Switching fabric
• 36 Gbps

Forwarding rate
• 23.8 Mpps

Height
• 44 mm

Width
• 341 mm

Depth
• 210 mm

Mounting
• Desktop

Weight
• 2.0 kg

Performance
• Up to 8K MAC addresses
• 256 VLANs (4K VLAN IDs)
• 128MB DDR SDRAM
• 64MB flash memory
• Packet Buffer memory: 512KB
• Supports 9kB jumbo frames
• Wirespeed forwarding

Reliability
• Modular AlliedWare Plus operating system
• Full environmental monitoring of PSU internal temperature and internal voltages. SNMP traps alert network managers in case of any failure

Flexibility and Compatibility
• SFP ports will support any combination of 10/100/1000T, 100X, 100FX, 100BX, 1000X, 1000SX, 1000LX, 1000ZX or 1000ZX CWDM SFPs

ENVIRONMENTAL SPECIFICATIONS
Operating temperature range
• 0°C to 40°C
• 0°C to 35°C with AT-SPLX40 or AT-SPZX80 or AT-SPFX/2 or AT-SPFX/15

Storage temperature range:
• -25°C to 70°C

Operating relative humidity range
• 5% to 90% non-condensing

Storage relative humidity range
• 5% to 95% non-condensing

Operating altitude
• 3,048 meters maximum

Electrical Approvals and Compliances
• EMC: EN55022 class A, FCC class A, VCCI class A
• Immunity: EN55024, EN61000-3-levels 2 (Harmonics), and 3 (Flicker) – AC models only

Safety
• Standards: UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1
• Certification: UL, cUL, TUV

Specifikace:
