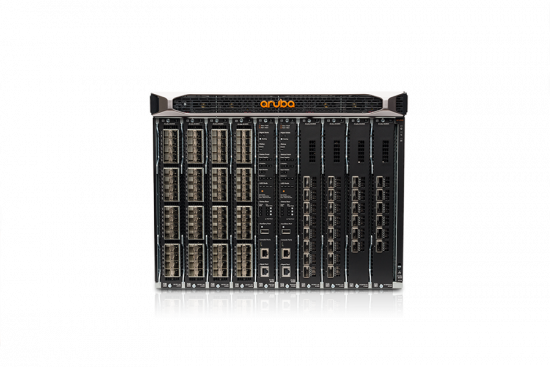

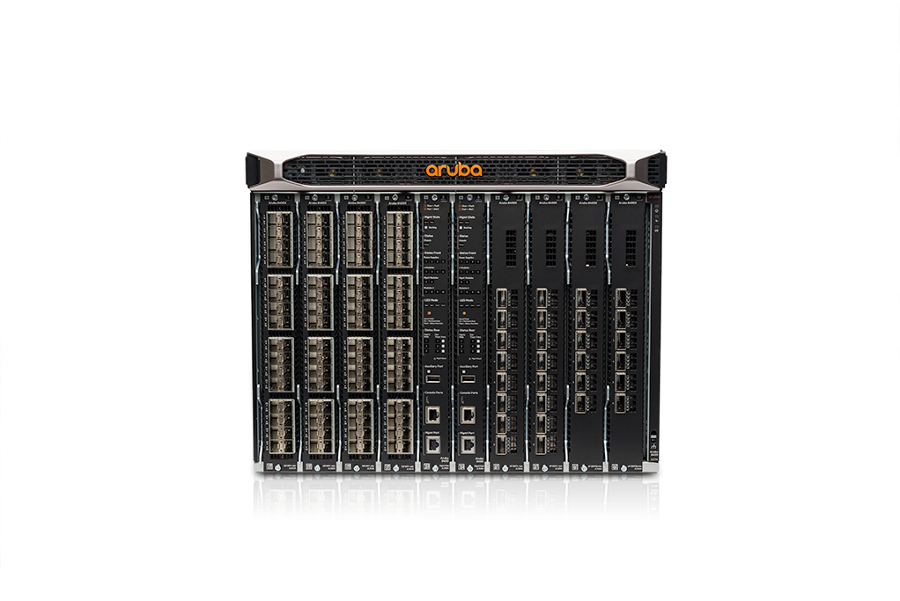

Aruba 8400 1 MM 3 PS 2 FM 32/8 Bdl

Popis produktu:

10-slot horizontal chassis, 8U, with 8 I/O , 2 management module slots, 3 switch fabric slots, 4 power supply slots. Includes one 32-port 10G module, one 6-port 40/100G IO module, 2 fabric modules, one management module, three power supplies, three fan trays each with six fans, cable manager, and 2-post rack kit.

specifikace:

Ports

8 I/O module slots
Ships with 32 10GbE (SFP/SFP+) and 6 40/100GbE (QSFP28) ports. Supports a maximum of 256 10GbE (SFP/SFP+) ports, or 64 40GbE (QSFP+) ports, or 48 ports 40/100GbE (QSFP28), or a combination.

Throughput

8.6 Bpps
Maximum, depending on model and configuration

Switching capacity

19.2 Tbps
Maximum, depending on model and configuration

Management features

Out-of-band management (serial RS-232C), SNMP Manager, Telnet, terminal interface (serial RS-232C), modem interface, IEEE 802.3 Ethernet MIB, Ethernet Interface MIB

Input voltage

90 – 140 / 180 – 264 VAC

Power consumption

2750 W

Minimum dimensions (W x D x H)

33 x 44.2 x 66 cm

Weight

74 kg
