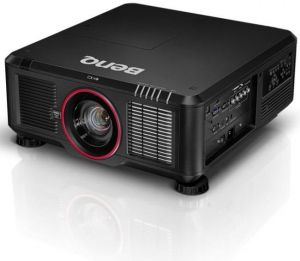

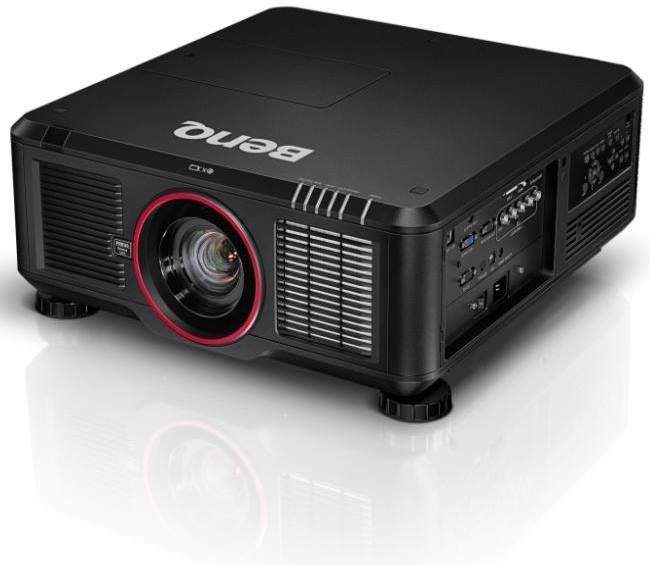

BENQ DLP Projektor PX9710/7700 ANSI/XGA/2800:1/DVI/HDMI/LAN

Popis produktu:

Projection System DLP

Native Resolution XGA (1024 x 768)

Brightness* 7700 ANSI lumens (Dual lamp, Standard lens)

Contrast Ratio 2800:1

Display Color 1.07 Billion Colors

Lens
Wide Fix (5J.JAM37.011) : F=1.85, f=11.6mm
Ultra Wide (5J.JAM37.061) : F=1.96~2.3
Wide Zoom (5J.JAM37.021) : F=1.85~2.5, f=18.7~26.5mm
Standard (5J.JAM37.001) : F=1.64~1.86, f=26~34mm
Semi Long (5J.JAM37.051) : F=1.86~2.48, f=32.9~54.2mm
Long Zoom1 (5J.JAM37.031) : F=1.86~2.41, f=52.8~79.1mm
Long Zoom2 (5J.JAM37.041) : F=1.85~2.48, f=78.5~121.9mm

Aspect Ratio Native 4:3 (5 aspect ratio selectable)

Throw Ratio
Wide Fix (5J.JAM37.011) : 0.79:1
Ultra Wide (5J.JAM37.061) : 0.77~0.97:1
Wide Zoom (5J.JAM37.021) : 1.3~1.85:1
Standard (5J.JAM37.001) : 1.79~2.35:1
Semi Long (5J.JAM37.051) : 2.3~3.81:1
Long Zoom1 (5J.JAM37.031) : 3.71~5.57:1
Long Zoom2 (5J.JAM37.041) : 5.5~8.56:1

Image Size (Diagonal) 80"~500"

Zoom Ratio
Wide Fix (5J.JAM37.011) : Fixed
Ultra Wide (5J.JAM37.061) : 1.25:1
Wide Zoom (5J.JAM37.021) : 1.41:1
Standard (5J.JAM37.001) : 1.3:1
Semi Long (5J.JAM37.051) : 1.65:1
Long Zoom1 (5J.JAM37.031) : 1.5:1
Long Zoom2 (5J.JAM37.041) : 1.55:1

Lamp Type 350W x 2

Keystone Adjustment Vertical ± 30 degrees

Resolution Support VGA (640 x 480) to WUXGA (1920 x 1200)

Horizontal Frequency 15K~91KHz

Vertical Scan Rate 48~120Hz

Lens Shift
Wide Fix (5J.JAM37.011) : NA
Ultra Wide (5J.JAM37.061) : 0-45% Vertical; +-10% Horizontal
Wide Zoom (5J.JAM37.021) : 0-50% Vertical; +-10% Horizontal
Standard (5J.JAM37.001) : 0-50% Vertical; +-10% Horizontal
Semi Long (5J.JAM37.051) : 0-50% Vertical; +-10% Horizontal
Long Zoom1 (5J.JAM37.031) : 0-50% Vertical; +-10% Horizontal
Long Zoom2 (5J.JAM37.041) : 0-50% Vertical; +-10% Horizontal

Interface
Computer 1 in (D-sub 15pin) x 1
Computer 2 in (5BNC, R/G/B/H/V) x 1
Monitor out (D-sub 15pin) x 1
HDMI x 1 (1.4a)
DVI-D in x 1
LAN (RJ45) x 1 (LAN Control)
USB (Type Mini B) x 1 (Download)
HD Connect x 1 (Share with RJ45)
DisplayPort x 1
12V Trigger x 1
RS232 (DB-9pin) x 1
Wired Remote x 1
IR Receiver x 2 (Front+Rear)

Dimensions(W x H x D) 510 x 230 x 540 mm

HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Video Compatibility NTSC, PAL, SECAM

Weight 21KG (Without lens)

Audible Noise 41/36/38/35 dB (Dual Lamp Normal/Dual Lamp Eco/Single Lamp Normal/Single Lamp Eco)

Power Supply AC100 V, 7.2A, 50 to 60 Hz

AC 220-240 V, 2.9A, 50 to 60 Hz

Power Consumption AC100 V, 710W (Standby Power <0.5W)
AC 220-240 V, 670W (Standby Power <0.5W)

On-Screen Display Languages ENGLISH/ ????/ FRANÇAIS/ ESPANOL/ DEUTSCH/ ITALIANO/ ????/ ???/ ??? / ???????/Portugues/ svenska(12 Languages)

Picture Modes Dynamic/Presentation/Cinema

Accessories (Standard)
Remote Control without Battery
6 Segments Color Wheel
Power Cord (by region)
User Manual CD
Quick Start Guide
Warranty Card (by region)
VGA (D-sub 15pin) Cable

Accessories (Optional)
Spare Lamp Kit (5J.JC705.001)
Ceilling Mount (5J.JCY10.001)

Optional Lens :
Wide Fix (5J.JAM37.011)
Ultra Wide (5J.JAM37.061)
Wide Zoom (5J.JAM37.021)
Standard (5J.JAM37.001)
Semi Long (5J.JAM37.051)
Long Zoom1 (5J.JAM37.031)
Long Zoom2 (5J.JAM37.041)

Lamp(Normal / Economic)*
2000/2500 hours
