Colortrac SmartLF Scan! 24

Popis produktu:

24" samostatný skener, rozlišení 600dpi opticky, kopírování, síťové skenování, skenování na USB. Nepotřebuje PC. Součástí balení přepravní kufr.
Skener Scan! nepotřebuje ani tiskárnu a umožňuje tak zcela samostatné skenování.



nelze vracet

Smartlf Scan! Specification
SmartLF Scan! 24 SmartLF Scan! 36

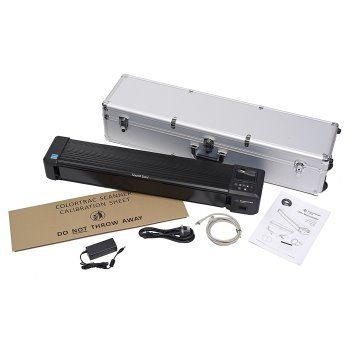

In the box Scan! large format scanner
Tough wheeled carry case
Mains external power supply
User instructions
Calibration target
RJ45 Ethernet cable
Scan System Four modes of operation.
TIFF, JPEG and PDF files are generated inside the scanner. They can be:
– stored in the scanner for transfer later
– stored directly on a USB stick (4-128 GB, FAT-32)
– transferred directly to local PC
– transferred directly to networked PC.
SmartLF Scan! is self-contained and only requires a power supply to operate.
Scan software Scan formats are viewable using native Windows Apps. The small NetApp Windows program is supplied to receive live or stored scan files directly from the scanner. NetApp also auto-displays PDF file types using any installed PDF viewer (e.g. Adobe Acrobat or similar).
No software is required for scan to USB stick operation.
Optical Resolution DocLogic (automatic) or manual 200, 400, 600 dpi
DocLogic Intelligent image optimisation system automatically sets dpi of document or photos according to physical size
to maximise image quality and reduce file size. Two settings – high and low detail.
Max Scan Width 24” / 609 mm 36” / 914 mm
Max Scan Length (all file formats) Up to 200” (5m) @200dpi or 150” (3.8m) @400dpi or 109” (2.7m) @600dpi – DocLogic reserves 300dpi. Up to 200” (5m)
Min Media Width / Thickness 6.2” (160 mm) / 0.003” (0.07 mm) 6” (150 mm) / 0.003” (0.07 mm)
Max Media Width / Thickness 26” (660 mm) / 0.02” (0.5 mm) 38” (965 mm) / 0.02” (0.5 mm)
Paper sizing (image sizes) ISO DIN / ARCH / ANSI / automatic width and length
Internal memory Approx. 6 GB or 8 scans
Scan Accuracy 0.2 % +/-1 pixel
SingleSensor digital imaging technology SingleSensor is a full width straight-line contact image sensor (US patent #8,922,849) bi-directional long-life LED light system for optimum object illumination and instant-on scanning capability
Operation modes Scan to internal memory / scan to USB stick (not supplied) / scan to networked computer
Color space 24-bit sRGB and grayscale (plus bitonal using the pc connection)
Scan speeds (maximum at 200 dpi) 4.5 inch/sec (114.3mm/sec) grayscale and 3 in/sec (76.2mm/sec) for color.
Paper Path Centered, face-up, front entry
Data interfaces Front: USB2 socket for scan to USB memory stick. Rear: Ethernet RJ45 GBit for scan to computer over network
Power Requirements External power supply Input: 100~240VAC, 50-60Hz, auto-sensing +/-10%, Output: 3.42A at 19V.
Scanner power consumption: 19.4 W (scanning), 10.2W (idle), 0.3W(sleep/ON), 0.05W (standby/soft OFF).
Product enters sleep after 15 min and standby after 60 min. Document load or pressing green button reactivates from sleep. Switch scanner off and on again to reactivate from standby. Energy Star V2 qualified
Environment Operating temperature 10oC – 35oC, Relative Humidity 10% – 90% (non-condensing)
Weight & Dimensions (WxHxD) Scanner only 11.5 lbs (5.2 kg) / 34.3 x 6.3 x 5 inches (870 x 160 x 126 mm)
Scanner incl. case: 22.3 lbs (10.1 kg) / 38.6 x 10.4 x 8.2 inches (980 x 265 x 208 mm) Scanner only 15.4 lbs (7 kg) / 46.3 x 6.3 x 5 inches (1175 x 160 x 126 mm)
Scanner incl. case: 30.9 lbs (14 kg) / 50.4 x 10.4 x 8.2 inches (1280 x 265 x 208 mm)
Host Platform Windows 10, Windows 8.1, 32-bit and 64-bit architectures
Certifications ENERGY STAR qualified, CB, CE, CCC, FCC, UL, RoHS compliant
Warranty 12 months / 30,000 linear metres whichever comes first
