D-Link 5-in-1 USB-C Hub with Gigabit Ethernet/Power Delivery

Popis produktu:

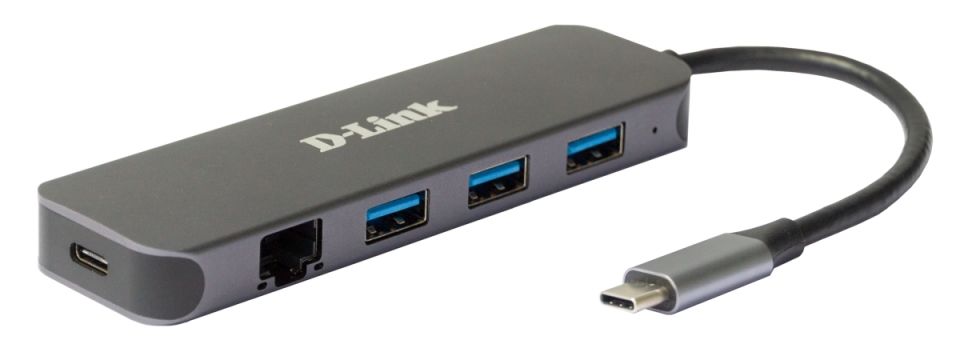

D-link DUB-2334
USB-C Mini Docking Station with 3xUSB 3.0, USB-C/PD 3.0 and Gigabit Ethernet

Description
The DUB-2334 docking station allows you to enhance the functionality of your laptop or desktop computer equipped with USB Type-C port. USB 3.0 ports allow to connect up to three peripheral USB devices to the DUB-2334 while Gigabit Ethernet port provides of up to 1000 Mbps network connectivity. USB Type-C port is intended for connecting PD 3.0 charger, allowing to deliver not only data, but also power to your laptop via connected DUB-2334 docking station1. This means you can charge your laptop while also connect additional devices like digital and web cameras, card readers, hard drives, mice, keyboards, printers, scanners, and other peripheral and network devices.

Add Three USB 3.0 Ports to Your Computer
With the DUB-2334 docking station, you can conveniently add three USB 3.0 ports and connect peripheral devices to your computer. USB 3.0 technology supports data rates of up to 5 Gbps.

PD 3.0 Standard
USB Type-C port is intended for connecting PD 3.0 charger, allowing to deliver not only data, but also power to your laptop via connected DUB-2334 docking station1.

Plug-and-Play Support
Simply connect the DUB-2334 to your computer. It’s that easy - no drivers or software installation is required.

1Please make sure that the USB Type-C port of your laptop supports PD 3.0.

General features
Hardware
Chipset
• RTL8153
Interfaces
• One USB Type-C connector
• Three USB 3.0 Type-A ports
• One USB Type-C/PD 3.0 port
• One RJ-45 Ethernet port (10/100/1000 Mbps)
LEDs
• Power (per device)
- Solid green - power is on
• Link (per Ethernet port)
- Solid green - Ethernet connection
• Speed (per Ethernet port)
- Flashing orange - data transmission

General
Standards
• USB 3.0
• USB 2.0
• USB 1.1
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• Pause mode
• Wake-on-LAN
Data rate
• Up to 5 Gbps (USB 3.0)
• Up to 1000 Mbps (Ethernet)
System requirements
• Available USB Type-C port
• Windows 7/8/8.1/10 and above, macOS (OS X 10.8 and above)

Physical Parameters
Dimensions (L x W x H)
• 118 x 35 x 13.5 mm
Weight
• 0.07 kg

Environmental Conditions
Power input
• From computer (USB bus powered)
Supplied charging voltage/current
• 20 V / 3 A (PD 3.0)
Temperature
• Operating: 0 to 45°C
• Storage: -10 to 70°C
Humidity
• Operating: up to 85% non-condensing
• Storage: up to 85% non-condensing

Package Contents
• DUB-2334 docking station
• Quick Installation Guide
• Warranty documents
