D-Link 6-in-1 USB-C Hub with HDMI/Card Reader/Power Delivery

Popis produktu:

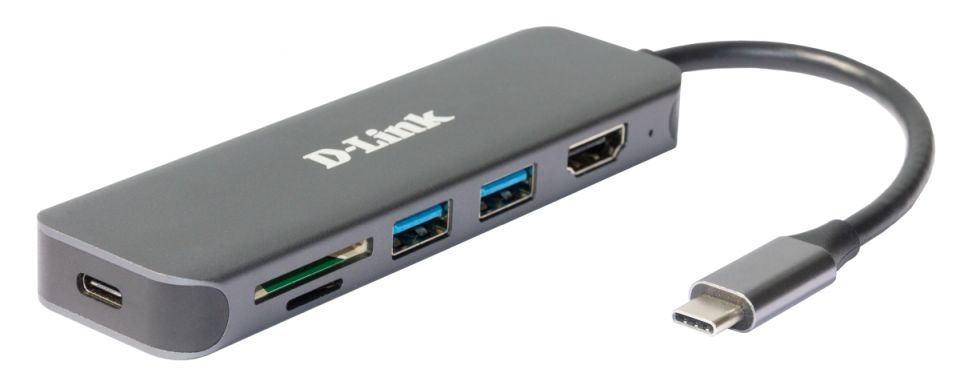

D-link DUB-2327
USB-C Mini Docking Station with 2xUSB 3.0, USB-C/PD 3.0, HDMI and SD/microSD Card Reader

Description
The DUB-2327 docking station allows you to enhance the functionality of your laptop or desktop computer equipped with USB Type-C port. USB 3.0 ports allow to connect up to two peripheral USB devices to the DUB-2327, HDMI port1 supporting up to 4K resolution is used for connecting monitor, and dual slot SD card reader allows you to insert SD2 and microSD3 cards into the corresponding slots. USB Type-C port is intended for connecting PD 3.0 charger, allowing to deliver not only data, but also power to your laptop via connected DUB-2327 docking station4. This means you can charge your laptop while also connect additional devices like monitors, SD2 and microSD3 cards, digital and web cameras, card readers, hard drives, mice, keyboards, printers, scanners, and other peripheral devices.

Add Two USB 3.0 Ports to Your Computer
With the DUB-2327 docking station, you can conveniently add two USB 3.0 ports and connect peripheral devices to your computer. USB 3.0 technology supports data rates of up to 5 Gbps.

Dual Slot SD Card Reader
The DUB-2327 docking station is equipped with the SD and microSD card slots. Use the dual slot card reader to access data on a SD2 and microSD3 card simultaneously.

PD 3.0 Standard
USB Type-C port is intended for connecting PD 3.0 charger, allowing to deliver not only data, but also power to your laptop via connected DUB-2327 docking station4.

Plug-and-Play Support
Simply connect the DUB-2327 to your computer. It’s that easy - no drivers or software installation is required.

1Please make sure that the USB Type-C port of your computer supports DP Alt (DisplayPort Alternate Mode).
2The docking station is compatible with SD/SDHC/SDXC cards.
3The docking station is compatible with microSD/SDHC/SDXC cards.
4Please make sure that the USB Type-C port of your laptop supports PD 3.0.

General features

Hardware
Interfaces
• One USB Type-C connector
• Two USB 3.0 Type-A ports
• One USB Type-C/PD 3.0 port
• One HDMI port
• SD card slot1
• microSD card slot2
LEDs
• Power (per device)
- Solid green - power is on

General
Standards
• USB 3.0
• USB 2.0
• USB 1.1
Data rate
• Up to 5 Gbps
Resolution
• 4K @ 30 Hz
System requirements
• Available USB Type-C port
• Windows 7/8/8.1/10 and above, macOS (OS X 10.8 and above)

Physical Parameters
Dimensions (L x W x H)
• 118 x 35 x 13 mm
Weight
• 0.07 kg

Environmental Conditions
Power input
• From computer (USB bus powered)
Supplied charging voltage/current
• 20 V / 3 A (PD 3.0)
Temperature
• Operating: 0 to 45°C
• Storage: -10 to 70°C
Humidity
• Operating: up to 85% non-condensing
• Storage: up to 85% non-condensing

Package Contents
• DUB-2327 docking station
• Quick Installation Guide
• Warranty documents

1The docking station is compatible with SD/SDHC/SDXC cards.
2The docking station is compatible with microSD/SDHC/SDXC cards.
