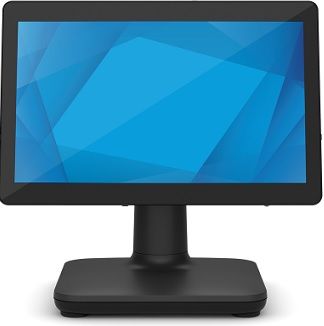

ELO I-Series 2.0 for POS, Win 10, 15.6-inch wide, 1366x768 HD display, Celeron, 4GB RAM, 1

Popis produktu:

Enclosure Color

Black

Touch Technology & Capacity

PCAP (TouchPro® Projected Capacitive) - 10 Touch

Processor

Intel® Celeron® Processor J4125 (4M Cache, up to 2.7 GHz)

Graphics

Intel UHD Graphics 600

BIOS

AMI

Memory (RAM)

4GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots
(Expandable to 8GB maximum on 2 slots)

Storage

128GB M.2 SATA SSD, 80 TBW

TPM

2.0

Diagonal Size

15.6'' diagonal, Active matrix TFT LCD (LED)

Aspect Ratio

16:9

Active Area (mm)

13.55" x 7.62" / 344.2 mm x 193.5 mm

Resolution

1366 x 768 @ 60Hz

Number of Colors

266,144

Brightness (typical)

LCD Panel: 220 nits
PCAP: 187 nits

Response Time-total (typical)

10 msec

Contrast Ratio

400:1

Viewing Angle

Horizontal: 45°/45° or 90° total / Vertical: 15°/35° or 50° total

USB Ports

3 x USB 3.0 (1 on display head, 2 on I/O)
2 x USB 2.0 (on I/O)
4 x Micro USB 2.0 (on display head)

Powered USB

1 x 24V on I/O
2 x 12V on I/O

Ethernet Port

1 x LAN RJ45 (Gigabit)

Serial Ports

2 x RJ45

Cash Drawer Port

12V/24V Cash Drawer Port on I/O (EPSON Pinout, 24V default; selectable by internal switch)

Additional Video Out

1 x Full-function USB-C (Power up to 27W, USB 3.0, Display Port)

Audio Ports

1 x 3.5 mm headset jack

Speakers

2 x 2W internal speakers

OS

No OS
Windows 10 IoT Enterprise LTSC 64-bit

Languages

Windows 10 - 36 Language groups

Power Supply

External 24VDC universal-type power supply brick
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Maximum output power: 180W

Power Consumption (Typical)

24W

Dimensions

15.2" x 14.54" x 8.71" / 386.2 mm x 369.3 mm x 221.2 mm

Shipping Box Dimensions

18.19" x 11.77" x 18.5" / 462 mm x 299 mm x 470 mm

Weight (Unpackaged)

10.4 lbs / 4.7 kg

Weight (Packaged)

15.2 lbs / 6.9 kg

Operating Temperature

0°C to 35°C / 32°F to 95°F

Storage Temperature

-20°C to 60°C / -4°F to 140°F

Humidity

Operating: 20% to 80%
Storage: 5% to 95% (38.7? max wet bulb temperature)

Regulatory approvals and declarations

UL/cUL, FCC, TUV, CE, CB, NOM, S-Mark, UKCA

Real-Time Clock

CR2032 lithium metal battery

MTBF

50,000 hours demonstrated

Mounting Options

75mm VESA mount

Warranty

3-year
