ERGOTRON StyleViewR Telemedicine Cart Single Monitor , Powered, pojízdný vozík s napájením

Popis produktu:

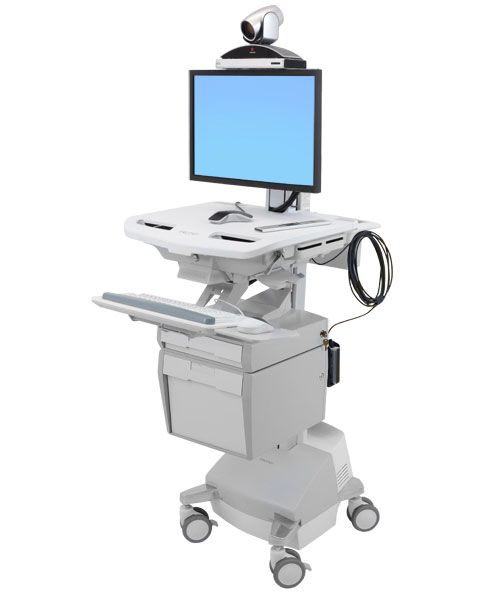

ERGOTRON StyleView® Telemedicine Cart, Single Monitor, Powered, pojízdný vozík s napájením, LCD, PC, telekomunik.

Expand healthcare access through telehealth with this easy and affordable mobile solution, which combines the power to support onboard diagnostics and videoconferencing with the benefits of a StyleView medical cart. Backed by our years of expertise and service, you can confidently build a telemedicine platform that matches your needs and budget.
* Order part number that coincides with regional power system requirements.

Open architecture allows for the integration of most standard computer and mobile communications equipment
Enables remote delivery of specialized care and timely diagnostics
Configured to accommodate all your telemedicine equipment; large lower bin is perfect for storage of critical appliances
Lower bin includes three internal USB ports for connecting diagnostic devices and two additional external ports for other devices to be connected on the fly
Mounts a video or web camera above the monitor, facing forward; camera travels with the monitor through its entire range of motion
Low configuration cost; ships fully assembled
Auto-locking drawers: Cart stores variable-length PINs for up to 1,000 users to allow electronically controlled access**
StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas
Keyboard pans fully side-to-side for closer access while interacting with clients
Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
For patient and caregiver safety the entire power system and the FULL cart are certified to UL/EN/IEC 60601-1. Complies with EMI limits of FCC Part 15 Class A
Low operating cost—autonomous rechargeable AC electrical source delivers safe, inexpensive and dependable power

Part Numbers: North America = SV44-53T1-1; Europe = SV44-53T1-2; United Kingdom/Ireland = SV44-53T1-3; Hong Kong/Malaysia/Singapore = SV44-53T1-3; Australia/New Zealand = SV44-53T1-4; China = SV44-53T1-5; Japan = SV44-53T1-6; Saudi Arabia (UK standard) = SV44-53T1-7; Saudi Arabia (EU standard) = SV44-53T1-8; India = SV44-53T1-B
Description: StyleView Telemedicine Cart, Single Monitor, SLA Powered (white, grey and polished aluminum)
Includes LCD pivot, auto-locking drawer system (ADS), primary top drawer with dividers, telemedicine bin with dividers, Ethernet side panel, worksurface, camera shelf, codec holder, medical-grade power strip, CPU lock, secure CPU compartment, four-port USB hub, scanner holder bracket, mouse holder, wrist rest, back-tilt keyboard tray, left/right mouse tray, rear handle, storage basket, cable storage, four casters (two locking), two-battery 66 Ah power system, 10-foot (3 m) coiled cord, three AC outlets, power system user interface, StyleLink software
Video camera, monitors, codec, diagnostic appliances and computing equipment not included
* Total maximum load on height-adjustment assembly = 39 lbs (17.7 kg). This is the sum of the following components: LCD pivot = 5–14 lbs (2.3–6.4 kg); camera shelf ? 2 lbs (1 kg); worksurface ? 5 lbs (2.2 kg); keyboard tray ? 2 lbs (1 kg); CPU compartment ? 13 lbs (5.9 kg); drawer ? 2 lbs (1 kg). Total maximum load attached to back of cart’s main column = 25 lbs (11.4 kg). This is the sum of the following components: codec/CPU holder ? 25 lbs (10.5 kg); storage basket = 5 lbs (2.2 kg)
Note: Locking the height of the LCD lift pivot changes the weight capacity to ? 20 lbs (9.1 kg), allowing it to accommodate heavier displays and all-in-one computers. When calculating load on pivot, also include weight of camera. Combined weight of LCD and camera should not exceed 20 lbs (9.1 kg). Combined weight of LCD, camera and CPU should not exceed 27 lbs (12.3 kg)
† LCD and worksurface adjust 12" (30 cm) in tandem; LCD Pivot adjusts 5" (13 cm) independently; maximum LCD height adjustment = 17" (43 cm)
‡ Portrait screen orientation may be incompatible with widescreen displays > 19"
** PINs managed by StyleLink software are limited to 5-digit length and 100 per cart
True Ergonomics
Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry—avoid repetitive-stress injuries while increasing comfort and productivity
Patented CF™ lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch
Safe
For patient and caregiver safety the entire power system and the FULL cart are certified to UL/EN/IEC 60601-1 and CAN/CSA-C22.2 No. 60601-1:08. Also complies with EMI limits of FCC Part 15 Class A
Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator)
Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved cleanability
Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control
Large, smooth worksurface; easy-to-clean design promotes infection control
Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty
Locking casters
CPU lock provided inside the storage compartment for additional security
Designed to meet guidelines established by the American National Standards Institute for computer use
Service
Includes FREE StyleLink with enterprise capabilities: Install, access and manage your StyleView power systems from a remote location across WAN, LAN, or VPN
Covered by Global Service Program—24/7 coverage
All the Details Covered
Tip-out bin provides storage and USB connectivity for up to three devices
Two external USB ports allow use of additional devices on the fly
External Ethernet port allows cart to be connected to network when wireless signal is not present
Drawer dividers are included, allowing compartments to be customized to match your workflow requirements
Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off
Button for LED lights is located conveniently on worksurface
Rear basket keeps task-related items where they can be quickly accessed
Ships fully assembled
Quick, easy access to CPU storage compartment: One-hand operation of secure latch with slide-out worksurface ensures easy access. Security cable in compartment deters CPU theft
Four-port USB hub
TAA (Trade Agreements Act) compliant
Easy access to components for field replacement and serviceability: keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time
Pre-routed cables provide quicker integration with equipment
Onboard internal power strip supports computing equipment and devices while ex
