ERGOTRON Under-Mount C-Clamp , uchycení ke stolu pro LX dual

Popis produktu:

ERGOTRON Under-Mount C-Clamp , uchycení ke stolu pro LX dual

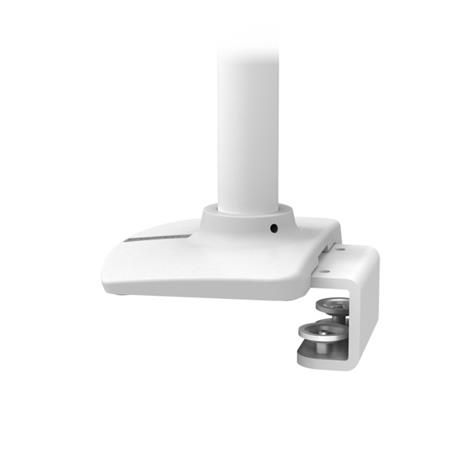

This c-clamp is an alternative attachment option for an LX Dual Side-by-Side or Stacking Arm. It features a cleaner look and requires less space under the desk’s surface edge for attachment. Recommended when integrating arms into select furniture systems or open-office layouts.

Consult Tech Specs to verify compatible SKUs.

Product Benefits
Presents a cleaner look when desk is seen from back
Requires less space under the desk’s edge for attachment
Easy installation
Sturdy, one-piece formed structural steel constuction

Part Number: 98-082
Description: Under Mount C-Clamp for LX and MXV Dual Arms (white)
Includes under mount c-clamp, two extension screws, mounting hardware
Compatible with 45-245-026, 45-248-026, 45-295-026, 45-491-216, 45-492-216, 45-537-216, 45-496-026 and 45-496-216, 45-496-231
Attaches to surface edge 0.5" to 1.26" (1.2–3.2 cm) thick
Made for tight installations: Protrudes only 0.8" (2 cm)—or 1.4" (3.5 cm) for desks thinner than 1" (2.5 cm)—from bottom of worksurface
Installation requires 1.2" (3 cm) from edge of desktop to back wall in order to slide clamp on from rear; alternatively, clamp can slide on from the side if open
Product Weight: 2 lbs (0.9 kg)
Shipping Dimensions: 7.3" x 6.4" x 4.6" (18 x 16 x 12 cm)
Shipping Weight: 2.4 lbs (1.1 kg)
