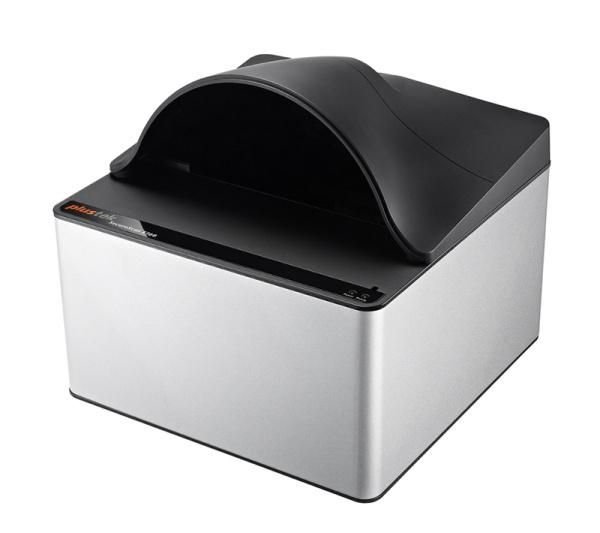

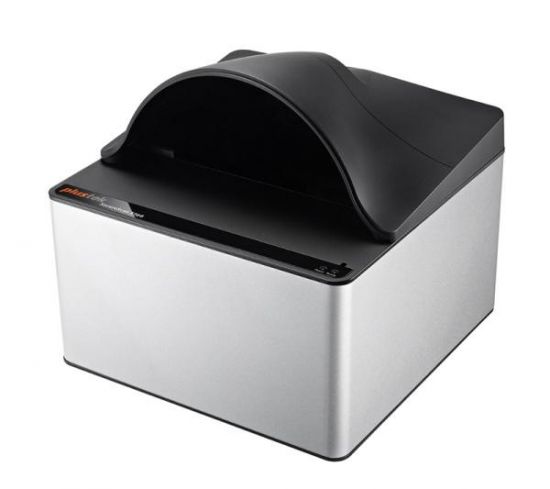

PLUSTEK SecureScan X100, skener na cestovní doklady , USB sken. plocha 127 x 95 mm

Popis produktu:

SecureScan X100, skener na cestovní doklady

A. Completely compliant with ICAO Doc 9303 standards
Supporting TD1/TD2/TD3/TDV document size scanning.

B. Capable of reading Machine Readable Zone, and Visual Zone data
To capture and verify relevant data of all international passports, as well as standard size plastic ID cards, drivers licenses, health insurance cards and other small size documents.

C. 2 light sources: Visible and Infrared (IR)
To meet the rules of each countries on travel documents, like IR drop-out.

D. Auto-Detect of document type, document size, and 2 seconds Quick-Scan with OCR
To reduce check-in time, increase traffic flow and accurate customer profile data. It only takes approximately 2 seconds from scan to show (including photo on screen).

E. Easy to integrate Identity Management Systems
Plustek offers SDKs to system integrators upgrading existing or developing new identity management system.

F. Low power design with USB power-in

Specification:
Light Source White LED / IR LED
Image Sensor CMOS
Optical Resolution 5 Megapixels
Focus Fixed
Scan Modes Color: 24-bit Input; 24-bit Output
IR: 24-bit Input; 8-bit Output
Scanning Speed Approx. 1 sec (Color Mode, Full Page passport image capture)
Scanning Area (W x L) Maximum: 127 x 95 mm (5" x 3.74")
Acceptable Paper Sizes (W x L) Maximum: 125 x 88 mm (4.92" x 3.46")
Action Button Dual Auto Detect Sensors
Power Supply USB Power: 5 Vdc / 0.5A
Interface USB 2.0
Net Weight 1.7 Kgs (3.78 Lbs)
Dimensions (W x D x H) Without Cover: 200 x 200 x 119 mm (7.87" x 7.87" x 4.69")
With Cover: 200 x 200 x 190 mm (7.87" x 7.87" x 7.48")
OS Windows XP / Vista / 7 / 8 / 10
Hardware Requirements Pentium® IV 1.8 GHz processor (2.4 GHz Recommended)
512 MB (1 GB Recommended)
Request 500 MB Free Space for installing all software
CD-ROM/ DVD-ROM drive
One available USB 2.0 port
