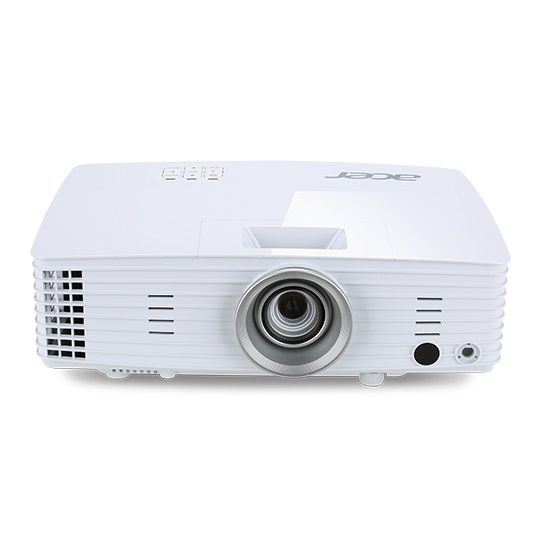

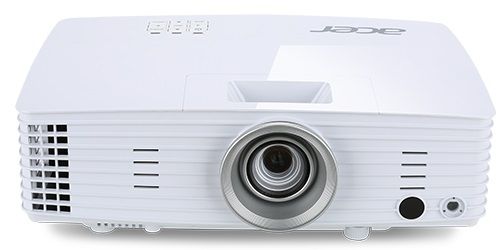

Projektor Acer H6518BD DLP/3D/1920x1080 1080p/3200 lm/20000:1/VGA/2xHDMI (MHL)/10 W Repro

Popis produktu:

H6518BD, 1080p (1920x1080), 3200 ANSI, 20 000:1, VGA, HDMI(MHL), internal HDMI(MHL), repro 10W (podpora BT audio), 2.4Kg, LumiSense+, ColorBoost 3D, ColorSafe II, NVIDIA&BluRay 3D, životnost lampy 3500h



Specifications / Model Name Acer H6518BD
EMI/Safety Model No. H1P1418
Projection System DLP®
Display Panel 0.65" DarkChipTM 3 DMD
Resolution "Native 1080p (1,920 x 1,080)
Maximum UXGA (1,600 x 1,200), WUXGA (1,920 x 1,200)"
Computer Compatibility IBM PC and Compatibles, Apple iMac/MacBook, and VESA Standards WUXGA (1,920 x 1,200), 1080p (1,920x1,080), WSXGA+ (1,680 x 1,050), WXGA+ (1,440 x 900), WXGA (1,280 x 800, 1,280 x 768), UXGA (1,600 x 1,200), SXGA+ (1,400 x 1,050), SXGA (1,280 x 1,024), XGA (1,024 x 768), SVGA (800 x 600), VGA (640 x 480)
Video Compatibility NTSC (3.58/4.43), PAL (B/D/G/H/I/M/N), SECAM (B/D/G/K/K1/L), HDTV (720p, 1080i, 1080p), EDTV (480p, 576p), SDTV (480i, 576i)
Aspect Ratio 16:9 (Native), 4:3
Contrast Ratio 20,000:1
Displayable Colors 1.07 Billion Colors
Brightness 3,200 ANSI Lumens (Standard), 2,560 ANSI Lumens (ECO)
Projection Lens "F = 2.59 ~ 2.87, f = 16.88mm ~ 21.88mm
1:1.3 Manual Zoom and Manual Focus"
Projection Screen Size (Diagonal) 45" (115cm) ~ 300" (762cm)
Projection Distance 4.9' (1.5m) ~ 25.1' (7.6m)
Throw Ratio 79"@2m (1.15 ~ 1.50:1)
Horizontal Scan Rate 15k ~ 100 Hz
Vertical Refresh Scan Rate 24 ~ 120 Hz
Lamp Type Philips 220 W user replaceable UHP lamp
Lamp Life "3,500 Hours (Standard), 5,000 Hours (ECO), 6,500 Hours (ExtremeEco)*

* ) Lamp Life of ExtremeEco mode is based on an industrial standard of educational usage cycle, which consists of 45 minutes of Full, ECO and/or Dynamic modes, 75 minutes of ExtremeEco (lowest lamp power) mode and 15 minutes of Power Off mode"
Keystone Correction +/-40 Degrees (Vertical), Manual & Auto
Projection Mode Front, Rear, Front-Ceiling, Rear-Ceiling
Ceiling Mounting Capability Yes
Audio "10 Watts Internal Speaker x 1
DTS sound effect
Bluetooth Wireless Speaker & Headphones supported"
Weight 5.3 lbs (2.4 Kg)
Dimensions 308 x 211 x 86 mm (12.1" x 8.3" x 3.4")
Remote Control IR remote control with & PgUp/PgDn functions
Digital Zoom 2X
PIP N/A
Lens Shift N/A
Multimedia Playback (USB and/or SD I/O) N/A
Supported Multimedia Formats N/A
Ethernet Network (LAN) Capability N/A
Wireless Capability Yes (By optional WirelessCAST, WirelessHD-Kit, WirelessAndroid-Kit )
Battery N/A
Battery Life N/A
Power Supply AC input 100~240V auto-switching power supply
Power Consumption 282 Watts (Standard), 220 Watts (ECO), <0.5 Watts (Standby)
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Operating Humidity 80%RH (Max.)
Noise Level 31 dBA (Standard), 26 dBA (ECO)
Uniformity 85%

Input Interface Analog RGB/Component Video (D-sub) x 1
Composite Video (RCA) x 1
S-Video (Mini DIN) x 1
Component (3 RCA) x 1
HDMI/MHL (Video, Audio, HDCP) x 1
HDMI/MHL (Video, Audio, HDCP, Internal) x 1
PC Audio (Stereo mini jack) x 2



Output Interface Analog RGB (D-sub) x 1
PC Audio (Stereo mini jack) x 1
DC Out (5V/1A, USB Type A) x 1
DC Out (5V/1A, USB Micro-B, Internal Plug) x 1

Control Interface USB (Mini-B) x 1
RS232 (D-sub) x 1


Network Interface


Standard Accessories AC power cord
VGA cable
Remote control
Battery for remote control
Lens cap
Carrying case
User's guide (CD-ROM)
Quick start guide
Security card
