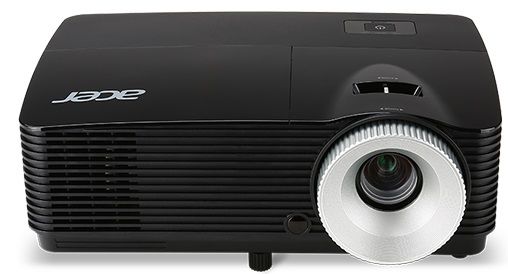

Projektor Acer X122 DLP/3D/1024x768 XGA/3000 lm/13000:1/VGA/Zoom/2,3 Kg

Popis produktu:

X122, DLP 3D, XGA (1024x768), 3000 ANSI, 13 000:1, VGA, 2.3Kg, ColorSafe II, životnost lampy 6000h



Specifications / Model Name Acer X122
EMI/Safety Model No. FNX1341
Projection System DLP®
Display Panel 0.55" DarkChipTM 3 DMD
Resolution "Native XGA (1,024 x 768)
Maximum UXGA (1,600 x 1,200), WUXGA (1,920 x 1,200)"
Computer Compatibility IBM PC and Compatibles, Apple iMac/MacBook, and VESA Standards WUXGA (1,920 x 1,200), 1080p (1,920x1,080), WSXGA+ (1,680 x 1,050), WXGA+ (1,440 x 900), WXGA (1,280 x 800, 1,280 x 768), UXGA (1,600 x 1,200), SXGA+ (1,400 x 1,050), SXGA (1,280 x 1,024), XGA (1,024 x 768), SVGA (800 x 600), VGA (640 x 480)
Video Compatibility NTSC (3.58/4.43), PAL (B/D/G/H/I/M/N), SECAM (B/D/G/K/K1/L), HDTV (720p, 1080i, 1080p), EDTV (480p, 576p), SDTV (480i, 576i)
Aspect Ratio 4:3 (Native), 16:9
Contrast Ratio 13,000:1
Displayable Colors 1.07 Billion Colors
Brightness 3,000 ANSI Lumens (Standard), 2,400 ANSI Lumens (ECO)
Projection Lens "F = 2.51 ~ 2.69, f = 21.95mm ~ 24.18mm
1:1.1 Manual Zoom and Manual Focus"
Projection Screen Size (Diagonal) 23" (57cm) ~ 300" (762cm)
Projection Distance 3.3' (1.0m) ~ 39.2' (11.9m)
Throw Ratio 50"@2m (1.96 ~ 2.18:1)
Horizontal Scan Rate 15k ~ 100 Hz
Vertical Refresh Scan Rate 24 ~ 120 Hz
Lamp Type Osram 190 W user replaceable P-VIP lamp
Lamp Life "6,000 Hours (Standard), 7,000 Hours (ECO), 11,000 Hours (ExtremeEco)*

* ) All above lamp life data are based on SPA mode condition. Lamp life of ExtremeEco mode is based on an industrial standard of educational usage cycle, which consists of 45 minutes of Full, ECO and/or Dynamic modes, 75 minutes of ExtremeEco (lowest lamp power) mode and 15 minutes of Power Off mode"
Keystone Correction +/-40 Degrees (Vertical), Manual
Projection Mode Front, Rear, Front-Ceiling, Rear-Ceiling
Ceiling Mounting Capability Yes
Audio N/A
Weight 5.1 lbs (2.3 Kg)
Dimensions 289 x 235 x 92 mm (11.4" x 9.2" x 3.6")
Remote Control IR remote control with PgUp/PgDn functions
Digital Zoom 2X
PIP N/A
Lens Shift N/A
Multimedia Playback (USB and/or SD I/O) N/A
Supported Multimedia Formats N/A
Ethernet Network (LAN) Capability N/A
Wireless Capability N/A
Battery N/A
Battery Life N/A
Power Supply AC input 100~240V auto-switching power supply
Power Consumption 240 Watts (Standard), 215 Watts (ECO), <0.5 Watts (Standby)
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Operating Humidity 80%RH (Max.)
Noise Level 30 dBA (Standard), 27 dBA (ECO)
Uniformity 85%
Input Interface Analog RGB/Component Video (D-sub) x 1
Composite Video (RCA) x 1



Output Interface



Control Interface USB (Mini-B) x 1
RS232 (D-sub) x 1


Network Interface


Standard Accessories AC power cord
VGA cable
Remote control
Battery for remote control
Lens cap (EMEA P/Ns only)
Carrying case (Optional by P/N)
User's guide (CD-ROM)
Quick start guide
Security card
