TP-Link Archer AX6000 - Wi-Fi router příští generace

Popis produktu:

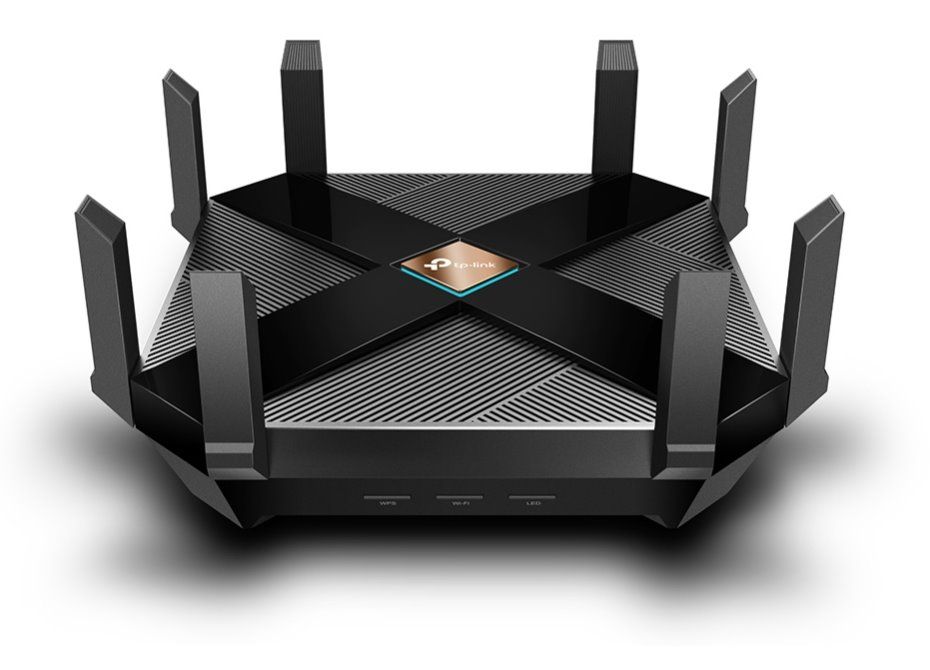

TP-Link Archer AX6000
AX6000 Wi-Fi router příští generace


Blesková rychlost - dvoupásmová Wi-Fi rychlost AX6000 posílena 1024QAM, přináší úžasnou bezdrátovou rychlost až 5952 Mb/s: 4804 Mb/s (5 GHz) a 1148 Mb/s (2,4 GHz)
Ultra konektivita - port WAN 1 × 2,5 Gb/s, porty 8 × Gigabit LAN a 2 × USB 3.0 typu A a typu C
Vysoce efektivní - nová OFDMA modulace podle 802.11ax zvyšuje až 4x průměrnou propustnost v místech s vysokou hustotou provozu ve srovnání se standardním routerem 802.11ac. Downlink a uplink MU-MIMO jsou podporovány.
Výkonné zpracování - 1,8 GHz čtyřjádrový procesor a 2 koprocesory, které eliminují latenci a poskytují stabilní výkon
Inteligentní připojení - Řízení pásma nasměruje klienty do méně přetíženého pásma a funkce Airtime Fairness optimalizuje využití času
Vestavěný bezpečnostní systém - TP-Link HomeCareTM nabízí, aby celá síť s pokročilou antimalwarovou službou, kterou pohání Trend Micro TM, poskytla antivirovou ochranu, rodičovskou kontrolu a QoS
Snadné nastavení - Spojte se s routerem přes Bluetooth a nastavte ho během několika minut pomocí výkonné aplikace Tether


Stránky produktu: https://www.tp-link.com/cz/home-networking/wifi-router/archer-ax6000/
Technické specifikace




WIRELESS



Standards
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz


WiFi Speeds
AX6000
5 GHz: 4804 Mbps (802.11ax, HE160)
2.4 GHz: 1148 Mbps (802.11ax)


WiFi Range
4 Bedroom Houses

8× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage

4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission


WiFi Capacity
Very High

Dual-Band
Allocate devices to different bands for optimal performance

4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

8 Streams
Connect your devices to more bandwidth


Working Modes
Router Mode
Access Point Mode


HARDWARE



Processor
1.8 GHz 64 Bit Quad-Core CPU


Ethernet Ports
1× 2.5 Gbps WAN Port
8× Gigabit LAN Ports

Static Link Aggregation (LAG) available with 2× LAN ports


USB Support
1× USB-C 3.0 Port
1× USB-A 3.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server


Buttons
Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button


Power
12 V = 4 A


SECURITY



WiFi Encryption
WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)


Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

HomeCare™ Antivirus

Malicious Site Checker
Port Intrusion Prevention
Infected Device Isolation
Notification and Log


Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network


VPN Server
OpenVPN
PPTP


SOFTWARE



Protocols
IPv4
IPv6


Service Kits
HomeCare™
Learn More>


OneMesh™
OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products>


Parental Controls
HomeCare™ Parental Controls

Custom Profiles
Content Filtering
App Block
URL Filtering
Time Limit
Time Schedule (Bedtime)
Log Insight


WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP


Quality of Service
QoS by Device

HomeCare™ QoS

QoS by Application


Cloud Service
Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS


NAT Forwarding
Port Forwarding
Port Triggering
DMZ
UPnP


IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN


DHCP
Address Reservation
DHCP Client List
Server


DDNS
TP-Link
NO-IP
DynDNS


Management
Tether App
Webpage
Check Web Emulator>


PHYSICAL



Dimensions (W×D×H)
10.3 × 10.3 × 2.4 in.
(261.2 × 261.2 × 60.2 mm)


Package Contents
Wi-Fi Router Archer AX6000
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide


OTHER



System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)


Certifications
FCC, CE, RoHS


Environment
Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing


TEST DATA



WiFi Transmission Power
CE:



WiFi Reception Sensitivity
5 GHz:
11a 6Mbps:-97dBm,11a54MBps:-79dBm
11ac VHT20 MCS0:-97dBm,11ac VHT20 MCS11:-67dBm
11ac VHT40 MCS0:-95dBm,11ac VHT40 MCS11:-64dBm
11ac VHT80 MCS0:-92dBm,11ac VHT80 MCS11:-61dBm
11ac VHT160 MCS0:-87dBm,11ac VHT160 MCS11:-55dBm
11ax HE20 MCS0:-95dBm,11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-93dBm,11ax HE40 MCS11:-61.5dBm
11ax HE80 MCS0:-89dBm,11ax HE80 MCS11:-58.5dBm
11ax HE160 MCS0:-86dBm,11ax HE160 MCS11:-56dBm

2.4 GHz:
11g 6Mbps:-97dBm,11a54MBps:-79dBm
11n HT20 MCS0:-97dBm,11n HT20 MCS7:-78dBm
11n HT40 MCS0:-95dBm,11n HT40 MCS7:-75dBm
11ac VHT20 MCS0:-96dBm,11ac VHT20 MCS11:-67dBm
11ac VHT40 MCS0:-94dBm,11ac VHT40 MCS11:-64dBm
11ax HE20 MCS0:-95dBm,11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-93dBm,11ax HE40 MCS11:-62dBm
