TP-LINK CPE510 Outdoor Wireless AP 5GHz, 802.11a/n, 13dBi ant., QCA, 2T2R, PoE

Popis produktu:

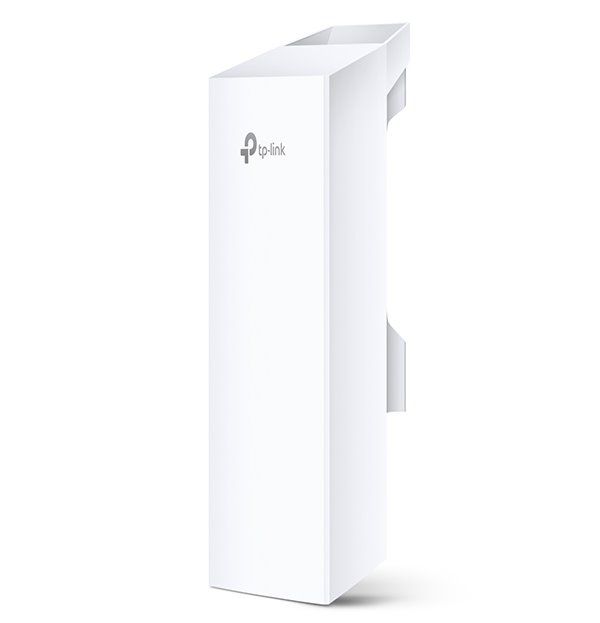

TP-Link CPE510
Venkovní CPE 5 GHz 300 Mbit/s 13 dBi


Venkovní jednotka TP-Link CPE510 s parametry 5 GHz 300 Mbit/s 13 dBi byla navržena pro cenově hospodárná řešení venkovních bezdrátových sítí. Umožňuje centralizovanou správu a je tak flexibilním a ideálním řešením pro aplikace typu point-to-point, point-to-multipoint a venkovní pokrytí bezdrátovou sítí. Díky výkonu na profesionální úrovni a uživatelsky přívětivému designu je jednotka CPE510 perfektní volbou pro firemní i domácí uživatele.

Vestavěná 13dBi 2x2 duální polarizovaná směrová anténa MIMO
Nastavitelný vysílací výkon od 0 do 27 dBm/500mW
Optimalizace na úrovni systému pro bezdrátový přenos do vzdálenosti více než 15 km
Technologie TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) zlepšuje výkon zařízení co se týče propustnosti, kapacity a latence, ideální pro aplikace PTMP
Centralizovaný systém správy – řízení Pharos
Provozní režimy AP / Klient / AP směrovač / Směrovač AP klienta (WISP)
Pasivní PoE adaptér podporuje napájení přes Ethernet až na 60 metrů a umožňuje vzdálené resetování zařízení


Stránky produktu:
https://www.tp-link.com/cz/business-networking/outdoor-radio/cpe510/

Technické specifikace


HARDWARE FEATURES
Processor Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc
Memory 64MB DDR2 RAM, 8MB Flash
Interface 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)

1 Grounding Terminal

1 Reset Button
Power Supply Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)

Voltage range: 16-27VDC
Power Consumption 9.8 Watts Max

Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H ) 224 x 79 x 60 mm
Antenna Type Built-in 13dBi 2x2 Dual-polarized Directional Antenna

Beam Width: 45° (H-Plane) / 45° (E-Plane)

Note: For more details, please refer to datasheet
Protection 15KV ESD Protection

6KV Lightning Protection
Enclosure Outdoor ASA stabilized plastic material

IPX5 waterproof Certification
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n (with Pharos MAXtream disabled)
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds Up to 300Mbps (40MHz,Dynamic)

Up to 144.4Mbps (20MHz,Dynamic)

Up to 72.2Mbps (10MHz,Dynamic)

Up to 36.1Mbps (5MHz,Dynamic)
Frequency 5.15~5.85GHz

Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Transmission Power 26dBm/398mw (Adjustable power by 1dBm)

Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
SOFTWARE FEATURES
Wireless Configurations Pharos MAXtream TDMA Technology

802.11a/n Modes

Selectable Channel Width: 5/10/20/40MHz

Automatic Channel Selection

Transmission Power Control

Dynamic Frequency Selection (DFS)

WDS Enable/Disable

Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption

SSID Broadcast Enable/Disable

Multi-SSID with VLAN Tagging (AP mode only)

Distance/ACK Timeout Setting

Wireless MAC Address Filter

Wireless Advanced:

> Beacon Interval/RTS Threshold/Fragmentation

>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management Discovery and Remote Management via Pharos Control application

HTTP/HTTPS Web-based management

System Log

SNMP Agent(v2c)

Ping Watch Dog

Dynamic DDNS

SSH Server
System Tools Wireless Signal Quality Indicators:

Signal Strength/Noise/Transmit CCQ/CPU/Memory

Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP

Spectrum Analyzer

Speed Test

Ping

Traceroute
System-level Optimizations Optimized IGMP Snooping/Proxy for multicast applications

Hardware watch dog
POE ADAPTER FEATURES
Dimensions(W x D x H) 110*57*33.5mm
Interfaces 1 AC Jack with Earth Ground

1 10/100Mbps Shielded Ethernet Port (Power + Data)

1 10/100Mbps Shielded Ethernet Port (Data)
Button Remote Reset Button
Power Status LEDs Green
Input 100-240VAC, 50/60Hz
Output 24VDC, 0.5A Max

+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency >80%
Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
OTHERS
Certification CE, FCC, RoHS, IPX5
Package Contents Outdoor Wireless CPE

24V 0.5A Passive PoE Adapter

Pole Mounting Straps

AC Power Cord

Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.

Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Environment Operating Temperature: -40°C~70°C (-40°F~158°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~95% non-condensing
