TP-Link CPE710 - Venkovní CPE anténa pro pásmo 5 GHz a šířku pásma 867 Mb/s se ziskem 23 d

Popis produktu:

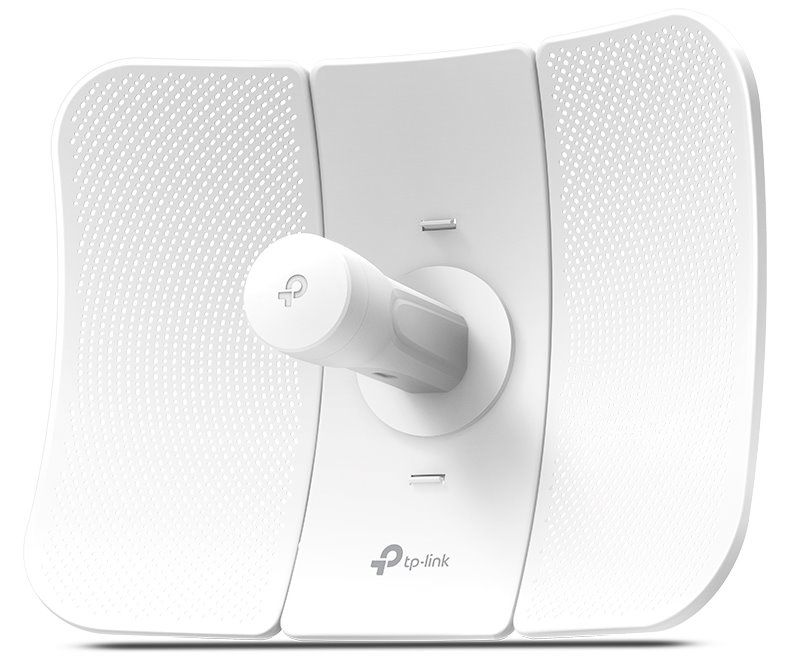

TP-Link CPE710
5GHz AC 867Mb/s 23dBi Outdoor CPE

802.11ac až 867Mb/s při 5GHz bezdrátové datové rychlosti
23dBi vysoce ziskový směrový 2 × 2 MIMO, ideální pro aplikaci na velké vzdálenosti
Vynikající směrovost paprsku, vylepšená latence a potlačení šumu
Inovativní díly se zámkem zajišťují rychlou montáž a robustní konstrukční řešení, které udržuje CPE710 stabilní i za silného větru
Bytelné krytí IP65 odolné vůči povětrnostním vlivům spolu s 15kV ESD a 6kV ochranou před bleskem zajišťuje vhodnost do každého počasí
Pharos Control poskytuje správcům bezplatný centralizovaný systém správy
Pasivní podpora PoE umožňuje flexibilní nasazení a pohodlnou instalaci


Stránky produktu:
https://www.tp-link.com/cz/business-networking/outdoor-radio/cpe710/

Technické specifikace


HARDWARE FEATURES
Processor Qualcomm 750MHz CPU, MIPS 74Kc
Memory 128 MB DDR2 RAM, 16 MB Flash
Interface 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)

1 Reset Button
Power Supply Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)

Voltage range: 16-27V DC
Dimensions (WxDxH) 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
Antenna Gain 23 dBi
Antenna Beamwidth 9° (Azimuth)/7° (Elevation)
Protection 15 KV ESD Protection

6 KV Lightning Protection
Enclosure Material: Outdoor PC stabilized plastic

Weatherproof: IP65 water and dust proof design
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n/ac
Wireless Speeds Up to 867 Mbps (80 MHz, Dynamic)

Up to 400 Mbps (40 MHz, Dynamic)

Up to 173.4 Mbps (20 MHz, Dynamic)
Frequency 5.15–5.85 GHz
Transmit Power Max. 27 dBm (Adjustable power by 1dBm)
SOFTWARE FEATURES
Network Configuration WAN: Static/ Dynamic/ PPPoE

LAN: Static/ Dynamic/ DHCP

Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger

Security: SPI Firewall/ Ping Forbidden/ DoS Protection

Access Control

Static Routing

Bandwidth Control

IP & MAC Binding
Wireless Configurations Selectable Channel Width: 20/40/80MHz

Auto Channel Selection

Transmit Power Control

Dynamic Frequency Selection(DFS)

WDS Enable/ Disable

Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,

SSID Broadcast Enable/ Disable

Multi-SSID with VLAN Tagging(AP Mode only)

Distance/ ACK Timeout Setting

Wireless MAC Address Filter

Wireless Advanced:

Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia

Long Range PtP
Management Discovery and Remote Management via Pharos Control application

HTTP/ HTTPS Web-based management

System log

SNMP Agent(v2c)

Ping Watch Dog

Dynamic DDNS

SSH Server
System Tools Indicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory

Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP

Spectrum Analyzer

Speed Test

Ping

Traceroute

Antenna Alignment
System-level Optimizations Optimized IGMP Snooping / Proxy for multicast applications
POE ADAPTER FEATURES
Dimensions(W x D x H) 85.8×43.9×29.7 mm
Interfaces 1 AC Jack with Earth Ground

1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)

1× 10/100/1000 Mbps Shielded Ethernet Port (Data)
Button Remote Reset Button
Power Status LEDs Green
Input 100-240VAC, 50/60Hz
Output 24VDC, 0.5A Max

+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency >84.29%
Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
OTHERS
Certification CE, FCC, RoHS, IP65, IC
Package Contents Outdoor Wireless CPE

24V 0.5A Passive PoE Adapter

Pole Mounting Kits

AC Power Cord

Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.

Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Environment Operating Temperature: -40°C~70°C (-40°F~158°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~95% non-condensing

Specifikace:
