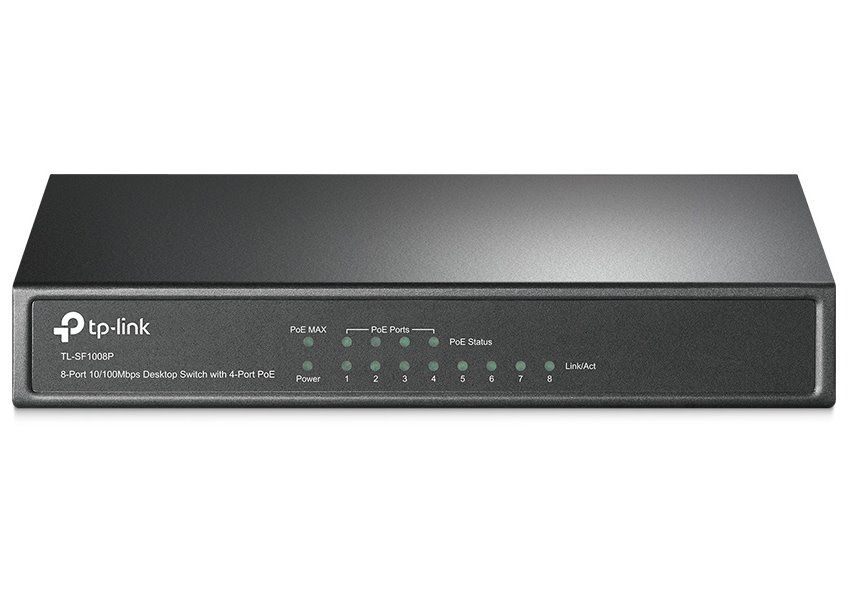

TP-LINK TL-SF1008P PoE switch, 8xLAN/4xPoE

Popis produktu:

8-Port 10/100Mbps Desktop Switch with 4-Port PoE
TL-SF1008P

With four PoE ports, transfers data and power on one single cable
Working with IEEE 802.3af compliant PDs, expands home and office network
Requires no configuration and installation

•Supports PoE power up to 15.4W for each PoE port
•Supports PoE power up to 57W for all PoE ports
•Supports PoE IEEE 802.3af compliant PDs
•Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
•2K entry MAC address table of the TL-SF1008P with auto-learning and auto-aging
•LED indicators for monitoring power, link, activity
•External power adapter supply


HARDWARE FEATURES



Interface
8 10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)

Fan Quantity
Fanless

Power Consumption
Maximum (PoE on): 60.2W (220V/50Hz)
Maximum (PoE off): 3.2W (220V/50Hz)

External Power Supply
External Power Adapter(Output: 48VDC / 1.25A)

PoE Ports (RJ45)
Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 57W

Backbound Bandwidth
1.6Gbps

Mac Address Table
2K

Dimensions ( W x D x H )
6.7*3.9*1.1 in. (171*98*27 mm)


SOFTWARE FEATURES



Transmission Method
Store-And-Forward

Advanced Functions
Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode



OTHERS



Certification
FCC, CE, RoHS

Package Contents
TL-SF1008P, Power Adapter, User Guide

Consumption
2.3 watts (max. no PD connected)
59.3 watts (max. with 57w PD connected)

Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
