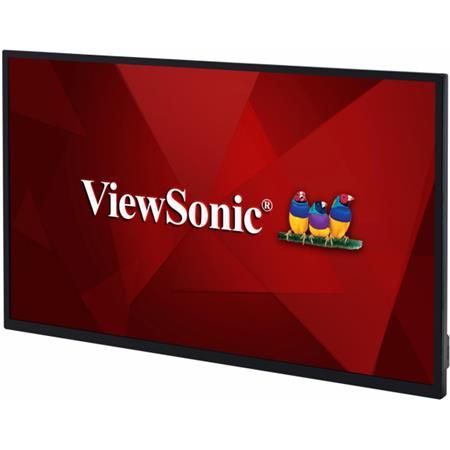

Viewsonic CDE3205-EP32 inch Full HD Enhanced Viewing Comfort USB Playback Commercial Displ

Popis produktu:

CDE3205-EP
32 inch Full HD Enhanced Viewing Comfort USB Playback Commercial Display
Full HD 1080p resolution
Integrated USB Multimedia Player
Dual 10W Integrated Speakers
Supports HDMI CEC pass-through
Blue Light Filter eyecare technology

OVERVIEW
The ViewSonic CDE3205 is a great value 32’’ (31.5” viewable) Full HD LED commercial display with high reliability working time 16 hours per day/7 days a week for retail, hospitality, and QSR (Quick Service Restaurant) environments. In addition to versatile connectivity options, including HDMI, VGA, DVI, YPbPr, USB, IR, RJ45, the display comes with a convenient USB multimedia playback functionality. With 1920 x 1080 resolution, 350-nit brightness, IPS 178-degree wide viewing angles and 2 x 10W stereo speakers, the slim-bezel CDE3205 delivers vivid images and remarkable sound for superior multimedia performance. The HDMI CEC pass-through support provides one control for multiple HDMI-connected devices while the free-bundled vController software makes remote display management easier via RSS232/RJ45 port. Creating a more comfortable viewing experience, the display is equipped with Blue Light Filter technology.

SPECIFICATIONS
LCD PANEL
Panel Size : 32"
Type/ Tech : TFT LCD Module with LED Backlight
Display Area (mm) : 698.4 (H) x 392.85 (V)
Aspect Ratio : 16:09
Resolution : 1920 x 1080
Colors : 16.7M colors
Brightness : 350 nits (typ.)
Contrast Ratio : 1200:1 (typ.)
Response Time : 8 ms
Viewing Angles : H = 178, V = 178 (typ.)
Backlight : WLED
Backlight Life : 30,000 Hours Min.
Hardness : 3H
INPUT
HDMI : x 1
RGB / VGA : x 1
DVI : x 1
Audio : x1 PC audio (3.5 mm), x 1 (RCA L/R)
CVBS (AV) : x 1 (Share with Y)
YPbPr : x 1
RS232 : x 1
IR : x 1 (over audio port)
OUTPUT
Audio : x 1 (RCA L/R)
RS232 : x 1
IR : x 1 (over audio port)
LAN
RJ45 : x 1
USB
2.0 Type A : x 1 (USB Playback)
SPEAKERS
10W x 2
COMPATIBILITY
VGA : Up to 1920 x 1080
DVI : Up to 1920 x 1080
HDMI : 480i, 480p,720p, 1080i, 1080p
CVBS : 480i
YPbPr : 480i, 480p,720p, 1080i, 1080p
POWER
Voltage : 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Consumption : Normal 57 W, Max 81 W
ERGONOMICS
Wall Mount (VESA® ) : 100x100mm / 200x200mm ; Screw: M4*8 mm
OPERATING CONDITIONS
Temperature (o C) : 5°C to 40°C
Humidity : 20% ~ 80% non-condensing
DIMENSIONS (W X H X D)
Physical (mm / Inch) : 726.5 x 462.93 x 239.8 mm / 28.6 x 18.23 x 9.44 in. (with Stand)
Physical W/o Stand (mm / Inch) : 726.5 x 425.4 x 63.6 mm / 28.6 x 16.75 x 2.5 inch
Packaging (mm / Inch) : 818 x 547 x139 mm / 32.2 x 21.54 x 5.47 inch
WEIGHT
Net (kg / Lb) : 6.67 kg / 14.7 lbs (with Stand)
Net W/o Stand (kg / Lb) : 5.20 kg / 11.46 lbs
Gross (kg / Lb) : 7.8 kg / 17.20 lbs
REGULATIONS
Standard : CE, CB, RoHS, ErP, WEEE
WHAT'S IN THE BOX?
1. CDE3205-EP commercial display
2. Remote Control with batteries
3. User manual CD wizard
4. Quick Start Guide
5. Power Cables
6. VGA cable
7. RS232 cable
8. RS232 daisy chain cable (2.4mm – 2.4mm)
9. IR sensor cable
