Viewsonic IFP6560 65" dotykový 4K/350cd/4000:1/8ms/3xHDMI/VGA/DP/RS232/OPS/RJ45/7xUSB/Repr

Popis produktu:

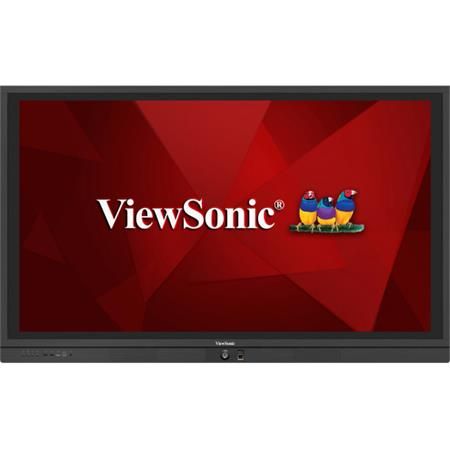

IFP6560 - 65" 4K Interactive Flat Panel

InGlass™ Technology for increased accuracy
FIPS201 certified fingerprint reader
20-Point Multi-Touch
Dual Expansion PC Slots
Built-in ARM Quad-core CPU with 16GB Storage

OVERVIEW
The ViewBoard® IFP6560 is an 65” 4K (3840 x 2160) digital whiteboard feature InGlass™ technology delivers a more accurate and sleek touchscreen experience with lag-free writing and drawing in two colors with different thicknesses. Pairing ViewBoard® IFP6560’s 20-point touch display with pre-installed tools, such as vBoard for annotation, ViewBoard® Cast for content sharing, and Zoom conference software, allows multiple users to remotely write, share, and interact simultaneously. The built in Finger print recognition bolsters security and enables easy login to Windows or myViewBoard™ for your digital whiteboad in the cloud. The optional Intel certified OPS (Open Pluggable Specification) which allows users to switch their system to Windows OS. ViewBoard® IFP6560 is fit for integration into Google-based environments, offers seamless Windows accessories & office365 compatibility, comes equipped with Mac multi-touch gesture mirroring, and supports Linux PC touch back remote control.

SPECIFICATIONS

DISPLAY
Panel Size: 65"
Type/Tech: TFT LCD Module with DLED Backlight
Display Area (mm): 1428.48(H) x 803.52(V) mm (64.5” diagonal)
Aspect Ratio: 16:9
Native Resolution: UHD 3840x2160(Pixels)
Colors: 16.7M (8bit)
Brightness: 350 nits (typ.)
Contrast Ratio: 4000:1 Typ.
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 30,000 Hours (Min)
Surface Treatment: AG G2
Bezel: Slim
Orientation: Landscape

TOUCH
Type/ Tech: Flatfrog InGlass technology P-series
Touch Resolution: 22855X12856
Touch Point: 20 points touch

INPUT
HDMI: 1.4a x1 (3840x2160@30Hz); 2.0 x2 (3840x2160@60Hz)
RGB / VGA: x1
DisplayPort: x1(3840x2160@30Hz)
Audio: x1 (PC Audio in)
RS232: x1
OPS: x1 PC Slot (Intel OPS Standard)

OUTPUT
RGB / VGA: Refer to timing table
HDMI: x1( 1080p, 4K@60hz)
Audio: x1 (Earphone out)
SPDIF: x1
RS232: x1

LAN
RJ45: x1

USB
Type A: USB 2.0 x3 (including 2 USB port in front); USB 3.0 x2
Type B: x2, for touch

SPEAKERS
10 Wx2

CAMERA PLATE ON TOP FOR SREW-IN WEBCAM INSTALLATION
Yes ( Support external Logitech Meet-up )

COMPATIBILITY
RGB PC/HDMI PC: Refer to timing table
HDMI: 3840x2160

EMBEDDED OS
Android 5.0.1

USB SUPPORTED FILE FORMAT
Picture -
MBP, JPG, JEPG

Video -
Codec: MPEG1/2, MPEG4, H.263, H.264, MVC, AVS, AVS+, WMV3, VCI, Motion JPEG, VP8, VP9
Container: MPEG PROGRAM STREAM, MPEG TRANSPORT STREAM, MP4, 3GPP, AVI, MKV, ASF, WMV, WEBM

Audio -
Codec: MPEG 1/2, AAC

BUNDLE SOFTWARE
Basic Annotation Software: vBoard
Pro Annotation Software: myviewboard for Windows (Pre-install in VPC12-WPO-3)
Wireless Presentation with Touch Feedback: Viewboard Cast: Yes
Screen Split: ViewSplit (Windows based): Yes (download from ViewSonic website)
Zoom: Yes
ViewSonic Launcher: Embedded

SPECIAL FEATURES
All-in-one USB port (combine Windows/Android USB port; no need to distinguish them anymore): Front USB SmartPort™ to all channels
One Click to Cloud Drive: Integrate into side tool bar
Simple LAN sharing between IFP and slot-in device: Yes

POWER
Voltage: 100V-240V,50/60Hz (AC)
Consumption: Operation:
210W (typ) - without OPS
270W (typ.) -with OPS
? 0.5 W ("Off")
*Max power consumption from OPS doesn’t over 60W.

ERGONOMICS
Wall Mount (VESA® ): 600 x 400

OPERATING CONDITIONS
Temperature (o C): 0°C to 40°C
Humidity: 20% ~ 80% RH non-condensing

DIMENSIONS (W X H X D)
Physical (inch / mm): 61.63x3.72 x 38.07 in/ 1565.5x967.1x94.5 mm
Packaging (inch / mm): 67.52x11.02x40.31 in/1715x280x1100 mm

WEIGHT
Net (lb / kg): 106.9 lb / 48.5 Kg
Gross (lb / kg): 134.5 lb / 61 Kg

REGULATIONS
FCC, CE, cTUVus,CB, RoHS, WEEEFCC, CE, cTUVus,CB, RoHS, WEEE, ES7.1

PACKAGE CONTENTS
1. HDMI cable(1.5 meters)
2. Power cable(3 meters) x 4 (A+E+M+U)
3. Remote control with AA battery
4. USB cable(1.8 meters)
5. Touch pen x 2
6. Quick Start Guide & Compliance statement
7. Webcam Plate
8. Wall mount Screw x 4

COMPATIBLE SLOT-IN PC
VPC12-WPO-2 ( Intel i5-6300U with vPro+Win10 Pro 64 bit )

UPC CODE
76690796351 9
