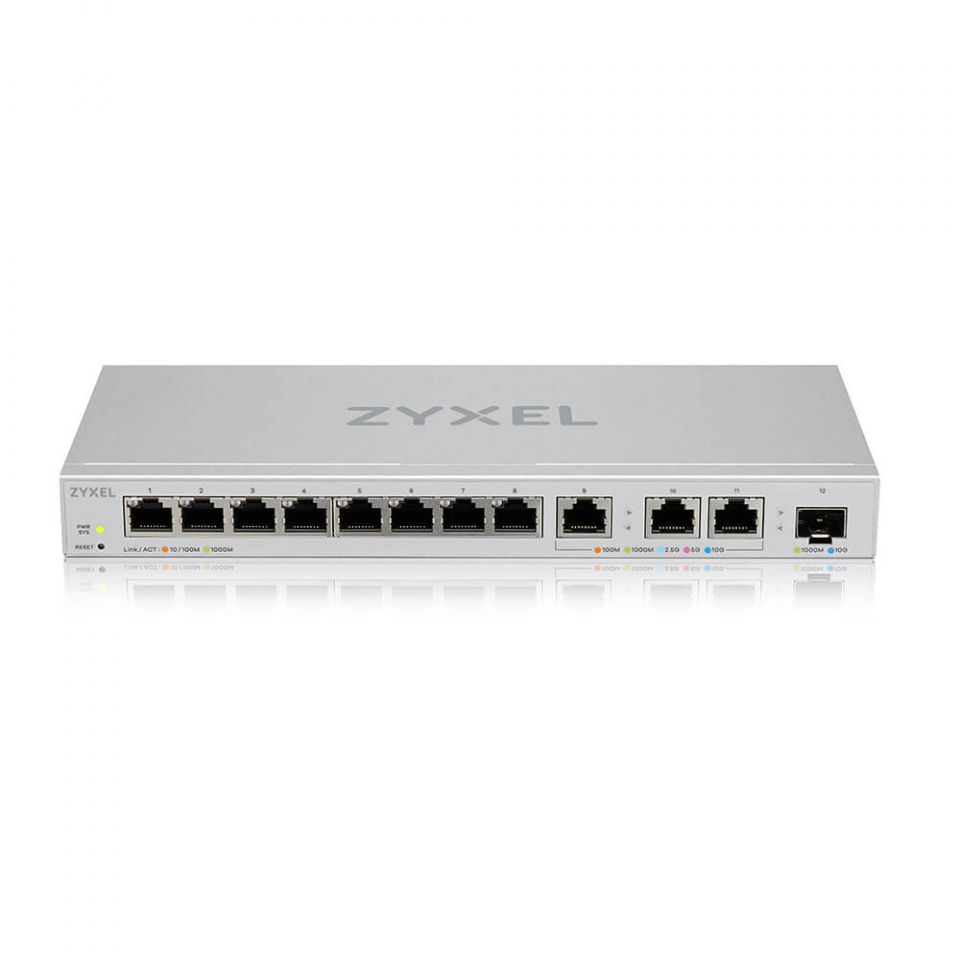

Zyxel XGS1250-12 v2, 12-Port Gigabit webmanaged Desktop Switch with 8 port 1G + 3-Port Mul

Popis produktu:

XGS1250-12, 12-Port Gigabit webmanaged Switch with 8 port 1G + 3-Port MultiGig 1/2.5/5/10G + 1-Port SFP+

Double the 10G Capability!
XS1250-12 features with three Multi-Gigabit ports supporting up to 10G and one additional 10G fiber port on top of the two 10G copper ports provided by the other vendors. With our additional fiber port and 10G connectivity boost the flexibility to adopt more 10G devices in your daily work.

Why Multi-Gigabit?
Increasing new applications raise the demand for higher network speed requirement. The Multi-Gigabit RJ-45 ports provide more speed options for your network. Before upgrading the network, you should figure out network speed of motherboard, PC, or WiFi 6 AP, and you need to pick up the right network cable to achieve the maximum speed.

Using Your Current Cabling Is Fine!
The Multi-Gigabit support is able to leverage existing Cat 5e cable infrastructure to upgrade network speed up to 5 times for cost efficient network setup.

Whisper-silent, Energy-saving at Work
The built-in smart fan is designed to automatically adjust speeds based on the device’s temperature; you can barely hear the sound while the switch is in operation. Also, the Energy Efficient Ethernet function is able to detect network traffic and adjusts power consumption dynamically to reduce business operating expenses.

Easy Web Management
The XGS1250-12 comes with essential features including VLAN, QoS, IGMP snooping v1/v2 and v3 compatible, link aggregation, and port mirroring which are configurable through a user-friendly web-based interface. It’s the most ideal solution to simplify networks for home and small office users.

Standard

IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3an 10GBASE-T
IEEE 802.3ae 10 Gbit/s Ethernet over fiber
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3x full duplex operation and flow control
IEEE 802.1p QoS
Performance

Switching capacity: 96 Gbps
Switching forwarding rate: 71.42 Mpps
MAC address table: 16 K
Packet buffer: 1.5 MB
Jumbo frame support up to 12 KB
Features

Web-based management
Auto-MDI/MDIX in all ports
System password
VLAN (Port supported)
Port-based QoS
802.1p QoS
Broadcast storm control
Loop detection/prevention
DHCP client
Static Link aggregation
Port mirroring
Weighted Round Robin (WRR) priority QoS
IGMP snooping v1/v2/and v3 compatible
Supported multicast groups: 128
Support Zyxel One Network (ZON Utility)

Interface

8 x RJ-45 10/100/1000 Mbps Ethernet port with metal shielding
3 x RJ-45 100M/1G/2.5G/5G/10G Ethernet port with metal shielding
1 x SFP+
Hardware reset button
LED Indicator

PWR: Power
Port 1-8: Link/Activity
Green: 1000 Mbps
Amber: 10/100 Mbps
Port 9-11: Link/Activity
Blue : 10Gbps
Purple : 5Gbps
Sky Blue : 2.5Gbps
Green : 1Gbps
Amber: 100Mbps
Port 12: Link/Activity
Blue: 10Gbps
Green : 1Gbps
Power Supply

AC-to-DC external power adapter
Input: 100-240V~50-60Hz
Output: 12V DC/2A

Item dimensions (WxDxH): 250 x 104 x 27 mm (9.84" x 4.10" x 1.06")
Item weight: 783 g (1.73 lb.)
Packing dimensions (WxDxH): 306 x 225 x 64 mm (12.04" x 8.86" x 1.06")
Packing weight: 1350 g (2.98 lb.)

Operating Environment

Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 10% to 90% (Non-condensing)
Storage Environment

Temperature: -40°C to 70°C (-32°F to 158°F)
Humidity: 10% to 90% (Non-condensing)

Safety: CE-LVD, BSMI
EMC: CE, EAC, FCC, BSMI, Class B

Package Contents
Switch
Power adapter
Quick Start Guide
Safety warning and DoC
